AudioControl DM-RTA PRO KIT Real Time Analyzer And Multi Test Tool Kit

AudioControl DM-RTA PRO KIT

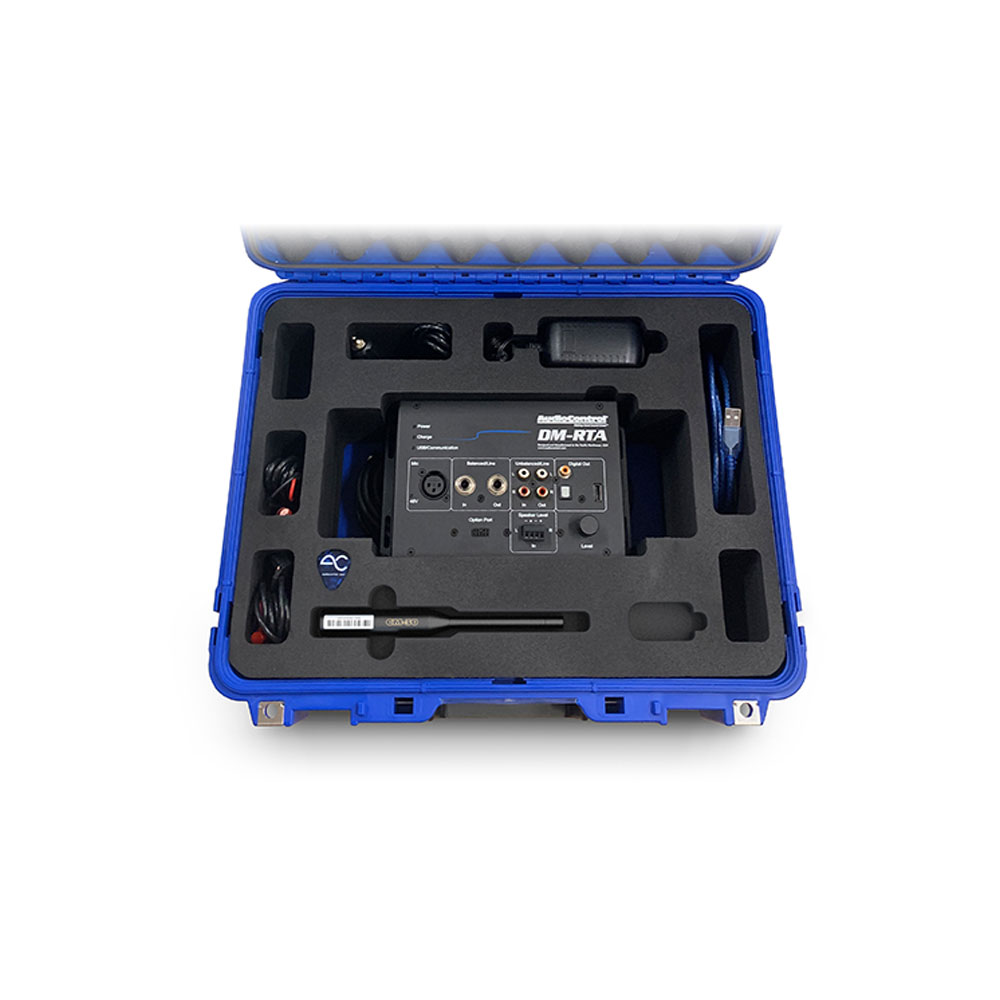

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-30 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements.

Included In Kit

• DM-RTA Real Time Analyzer
• 110V AC power supply/charging adapter (DM-RTA)
• 12V DC power supply/charging adapter (DM-RTA)
• USB A to B cable
• USB A to A cable
• CM-30 measurement microphone
• XLR microphone cable
• Speaker input to spring-loaded test leads cable
• RCA input to spring-loaded test leads cable
• AudioControl tuning pick (looks a lot like a guitar pick)

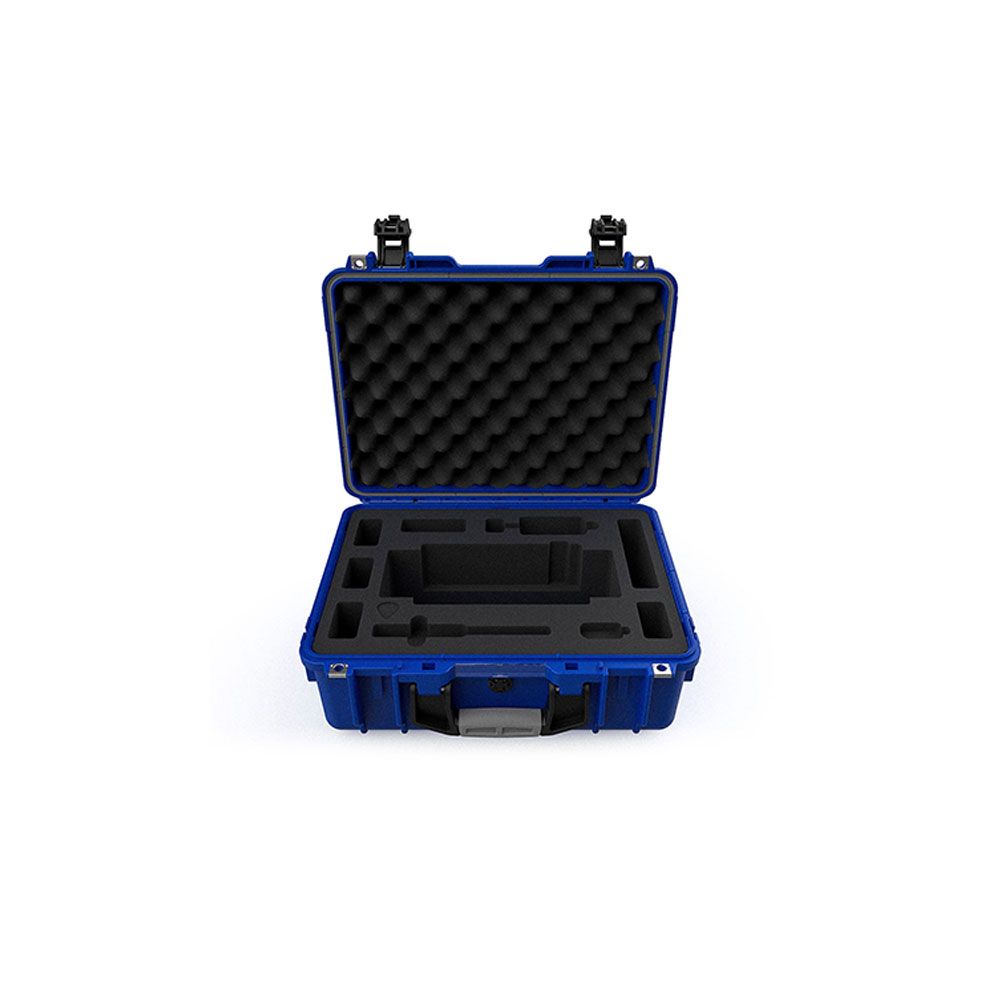

• Blue hard case with laser-cut foam

Specifications

DM-RTA

Inputs

• 1 x Balanced (Input Impedance 3.24kΩ)
• 1 x Unbalanced (Input Impedance 3.24kΩ)
• 1 x Microphone (Input Impedance 10kΩ)
• 1 x Speaker Level (Input Impedance 16.24kΩ)
• Max Low Level Input Voltage: 8 Vrms
• Max High Level Input Voltage: 40 Vrms

Outputs

• 1 x Balanced (Output Impedance: 51Ω)
• 1 x Unbalanced (Output Impedance: 51Ω)
• 1 x Coax Digital (Output Impedance: 75Ω)
• 1 x Toslink
• 1 x USB
• Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General

• Power Supply:
• Battery Life: ~5 Hours

Weight & Dimensions

• Dimensions: 8”W x 4.8”D x 2.4”H
• Weight: 2.6lbs (1.2kg)

In The Box

• DM-RTA
• USB Cable
• Power Supply
• Manual
• Warranty

CM-30

performance

• Frequency Response: 20Hz – 20kHz
• Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz)
• Max SPL: 138 dB SPL
• Connector: 3 pin XLR, pin 2 positive

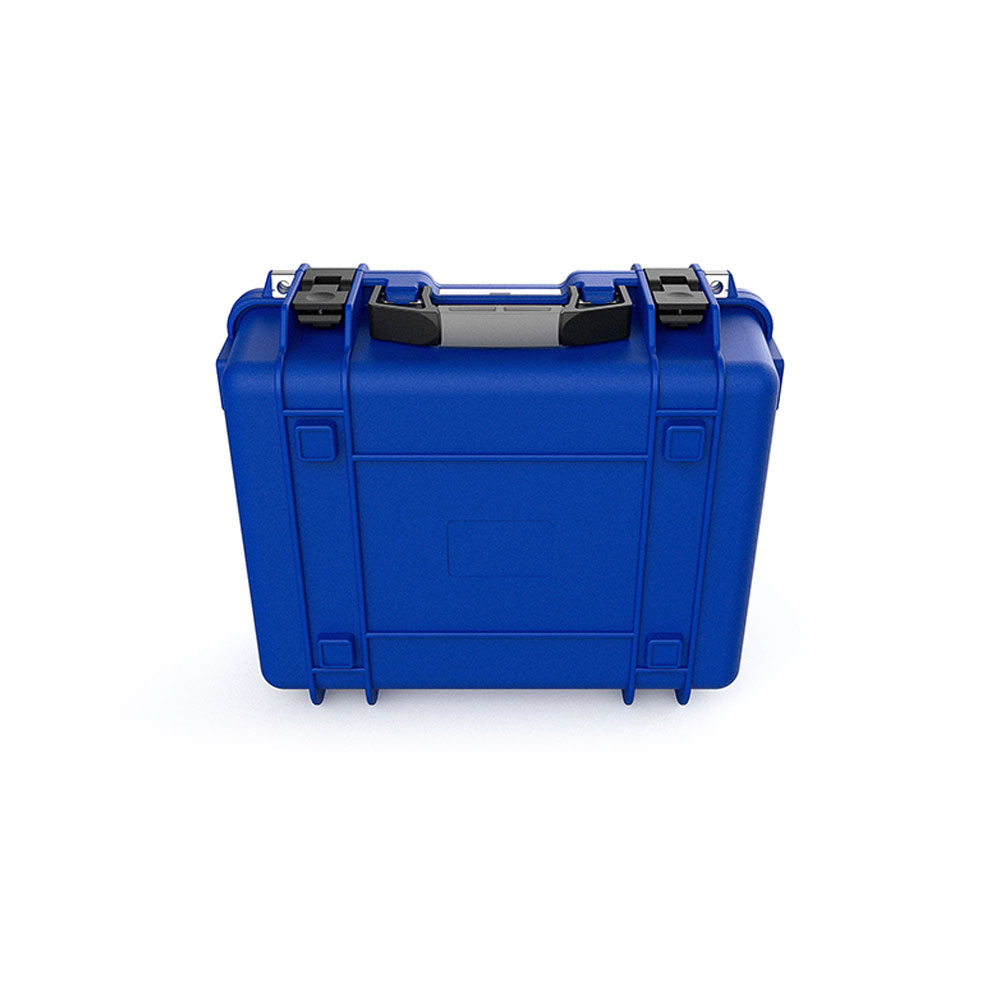

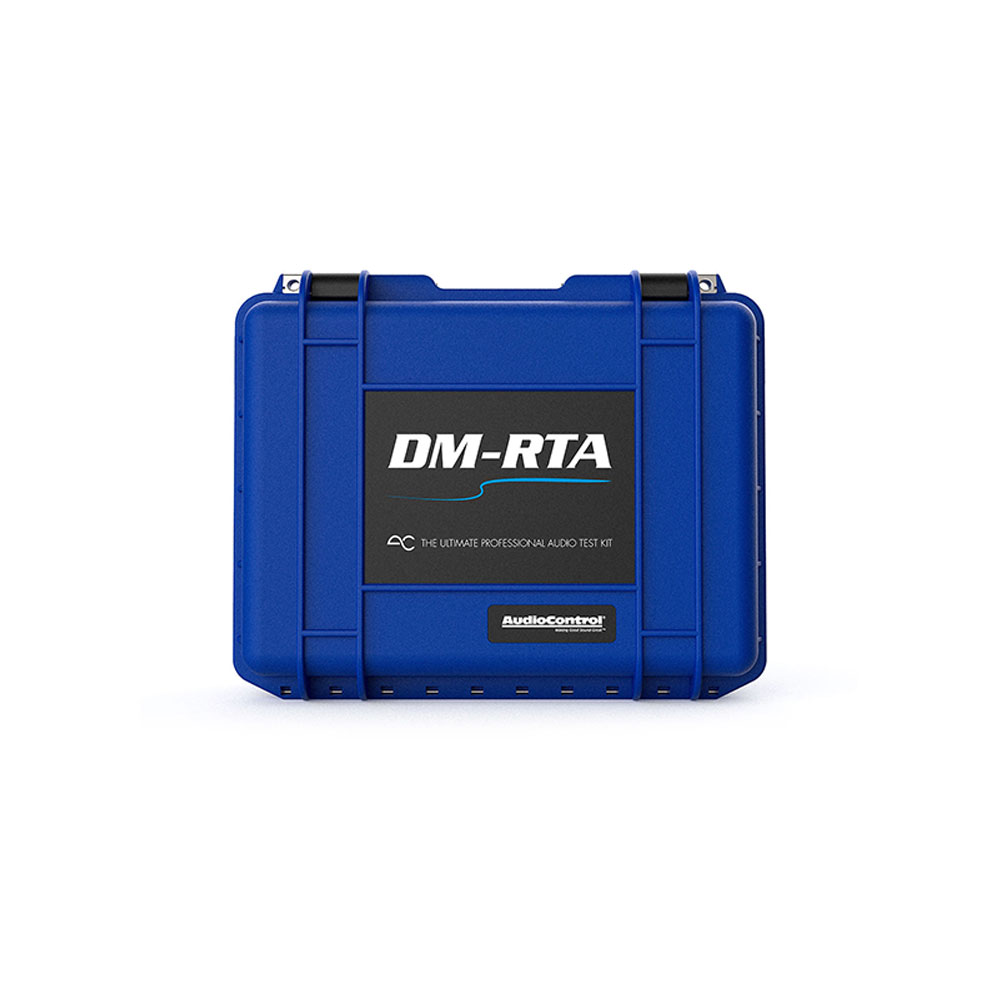

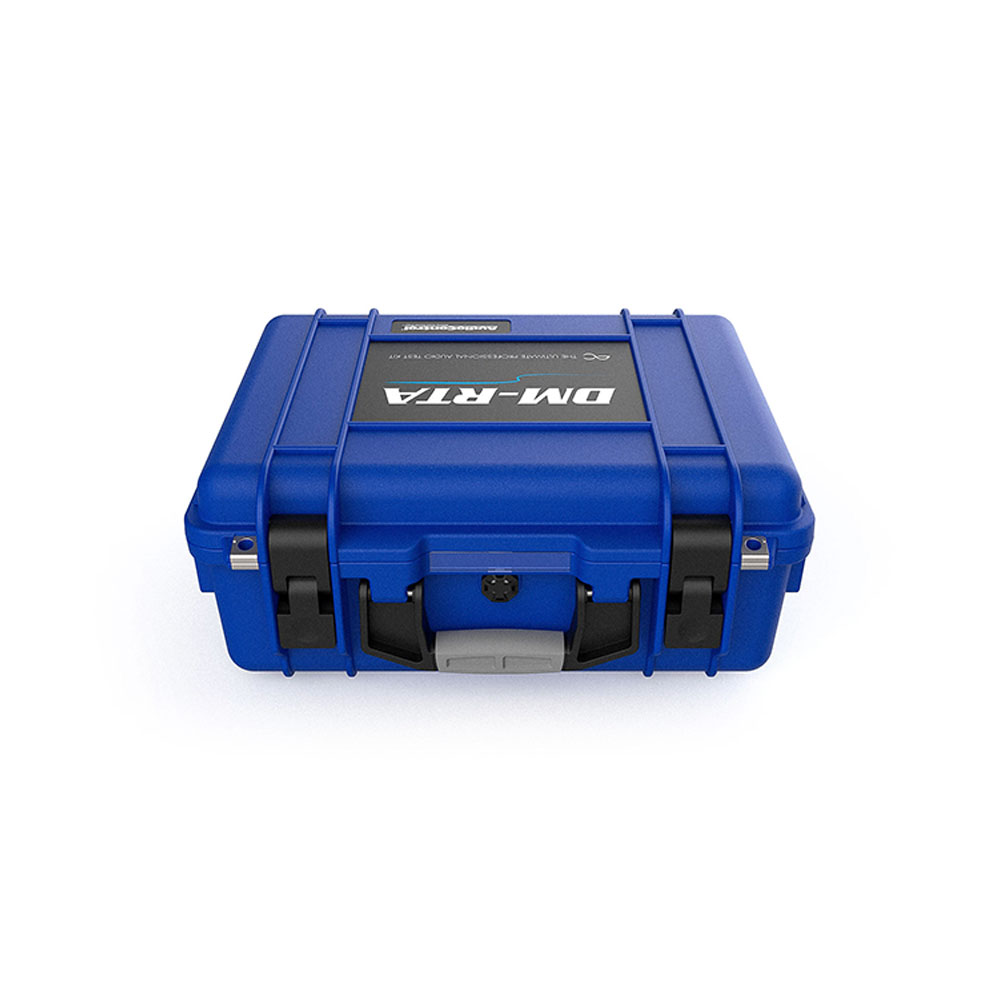

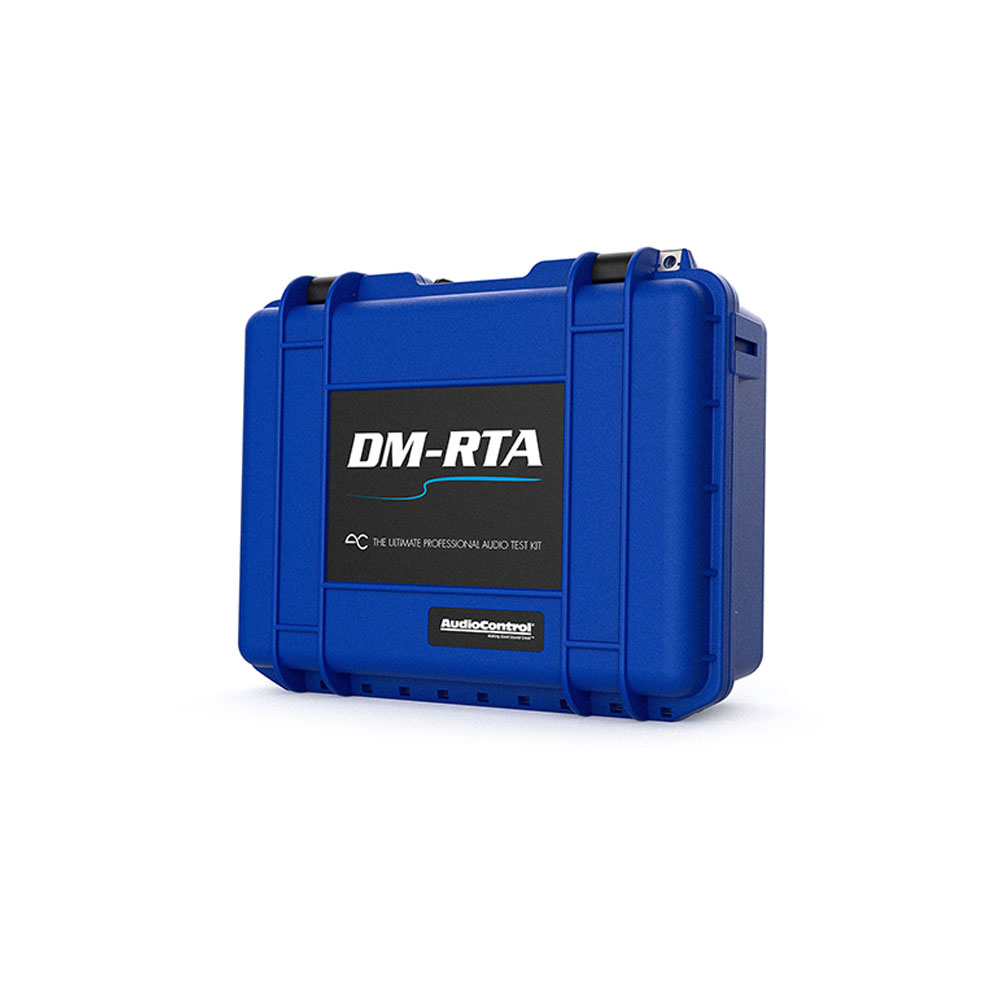

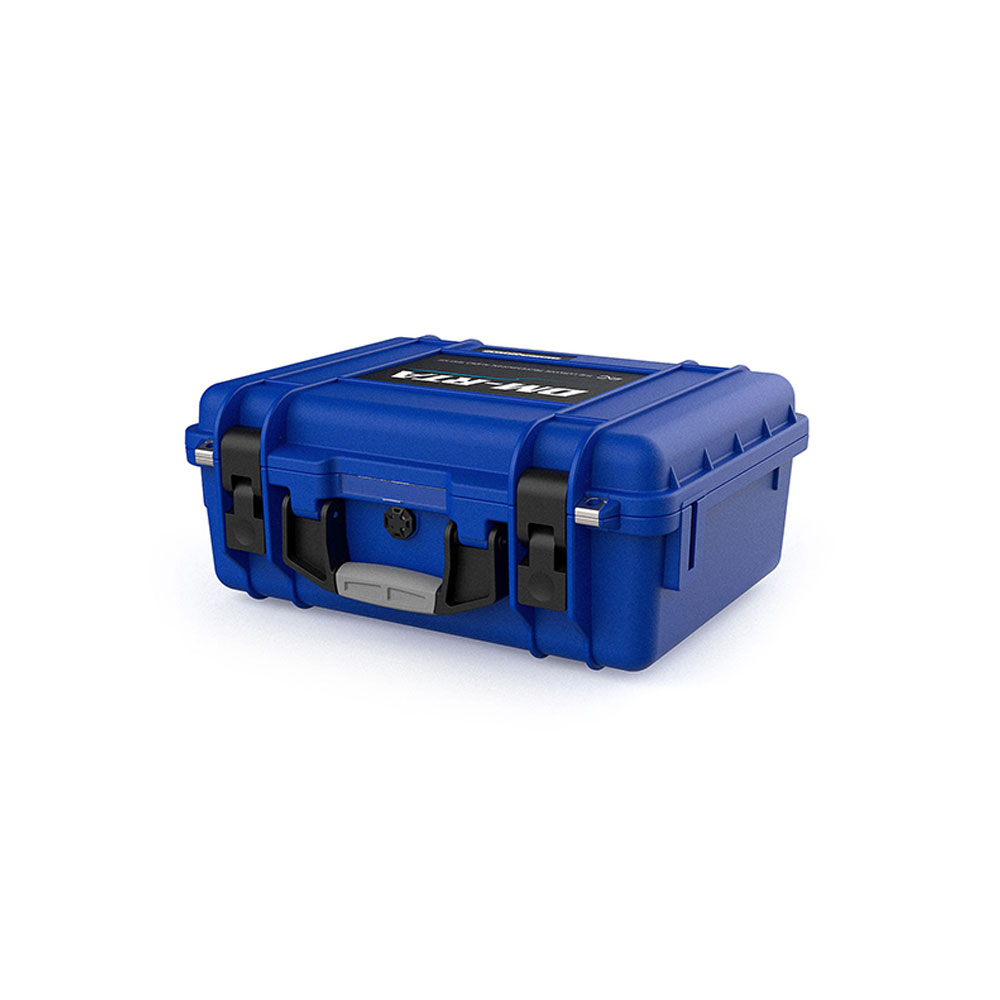

Hard Case

Weight & Dimensions

• Dimensions: 16.5”W x 16”D x 7”H
  Weight (with included product): 13.0 lbs. (5.9 kg)
