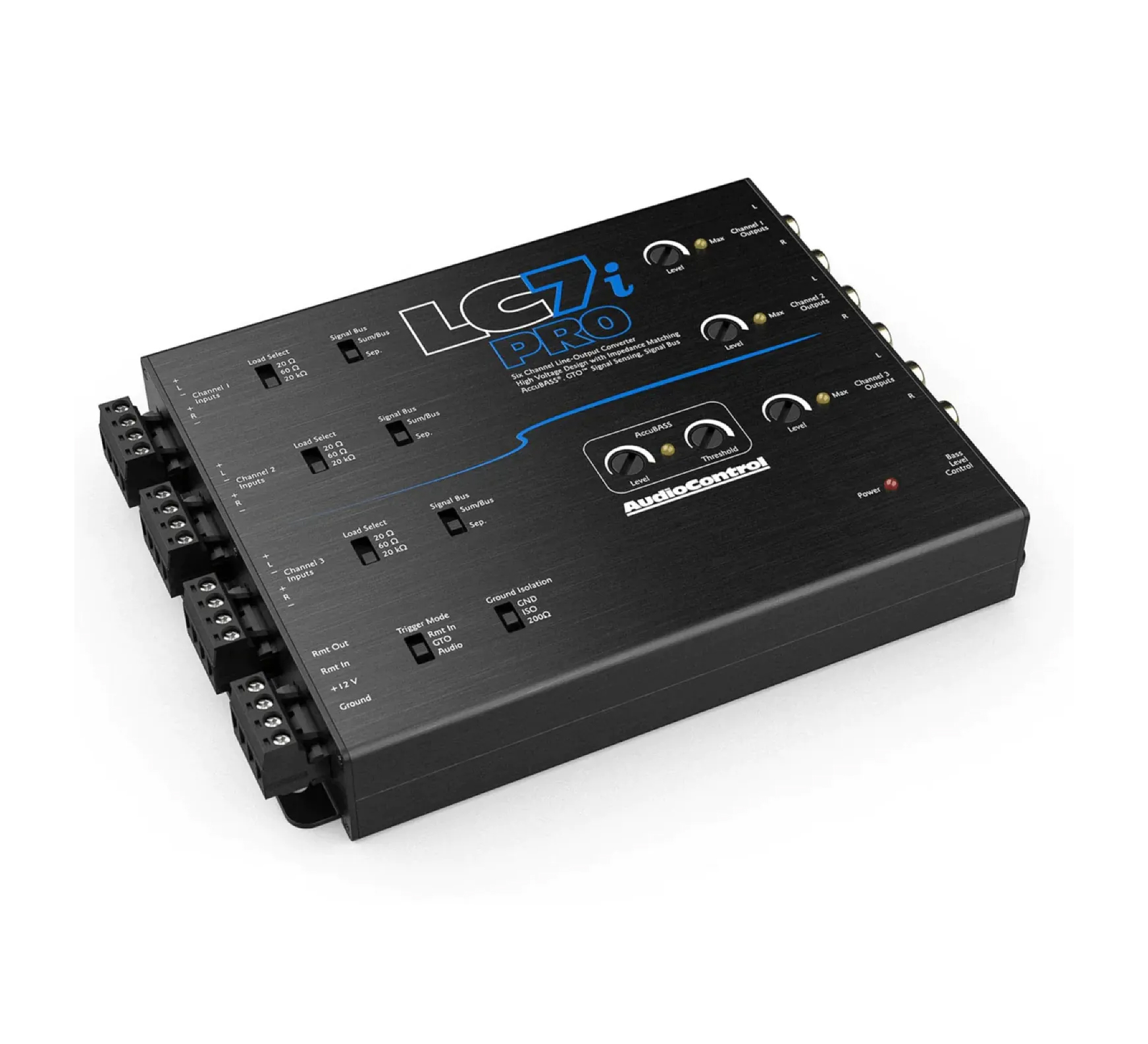

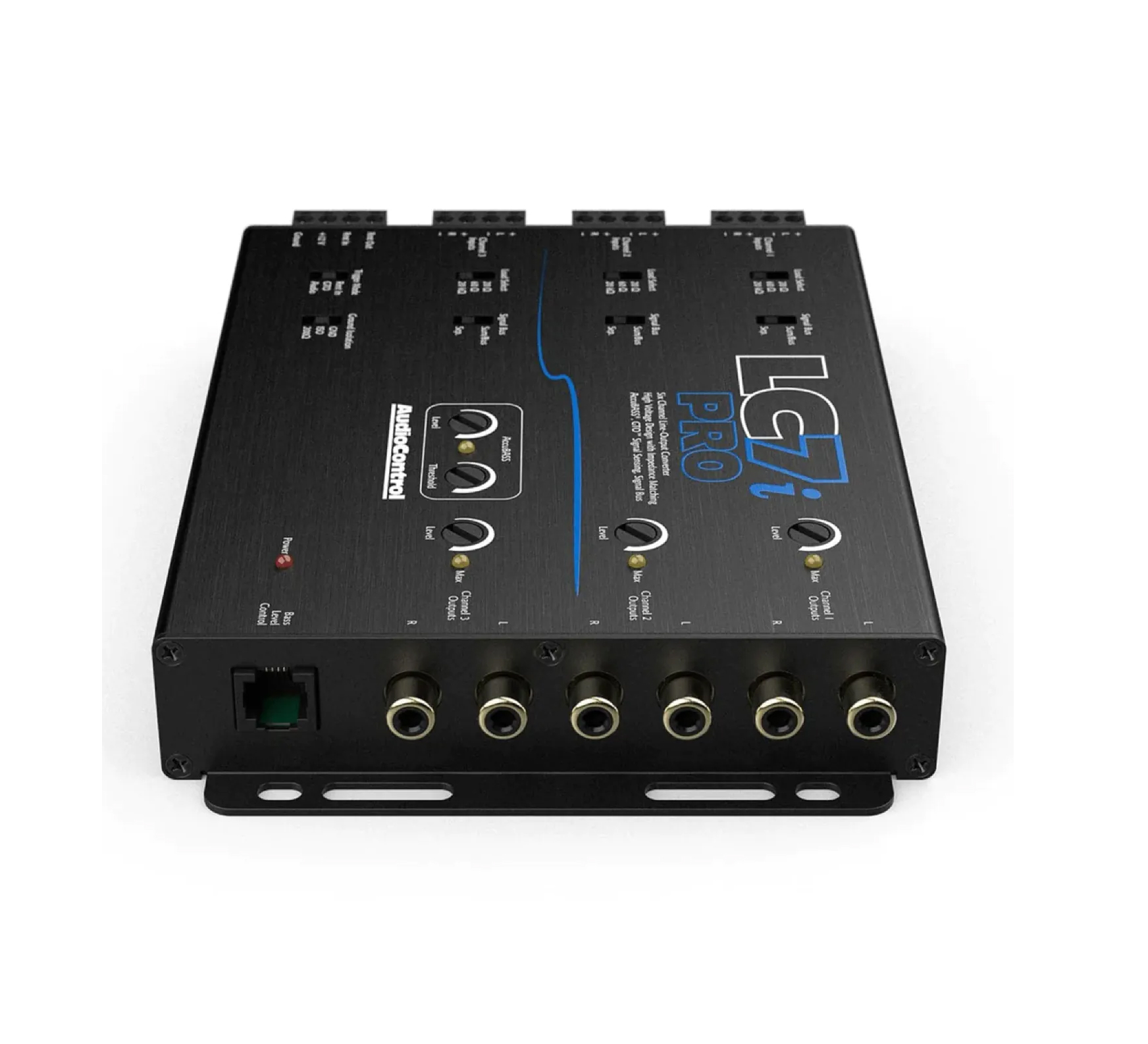

AudioControl LC7iPRO 6 Channel Line Output Converter With AccuBASS

Name: AudioControl LC7iPRO 6 Channel Line Output Converter With AccuBASS
Brand: AudioControl
SKU: LC7i-PRO
Availability: InStock

Brand:

AudioControl

AudioControl LC7iPRO Line Output Converter

... people are viewing this right now

Guaranteed Safe Checkout

£299.99

AudioControl LC7iPRO Line Output Converter

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound.

Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input.

All PRO series products feature AudioContol’s patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat.

The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

FEATURES

Six channels of active speaker-level inputs (up to 40V input handling)
Fixed and variable outputs with discrete-level controls
AccuBASS® processing for correction of bass roll-off
Load Selection Switch
GTOTM Signal Sensing
Ground Isolation Switch
ACR-1 dash remote included
Compact design

SPECIFICATIONS

INPUTS

Speaker Level Input: 3 (6 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

Preamp Outputs: 6 (4 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 15 dB
Output Impedance: 150Ω

PERFORMANCE

Total Harmonic Distortion: 0.01%
Signal to Noise: >124 dB
Frequency Response: 20 Hz – 20 kHz

CONTROL

Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

GENERAL

Current Draw: 330 mA
Recommended Fuse Rating: 2 A

WEIGHTS & DIMENSIONS

Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors)
Weight: 1.15 lbs.

IN THE BOX:

LC7i PRO
ACR-1
20′ Phone Cable
Speaker and Power connectors
Manual
Warranty
