ESX DBX108Q DBX Series 20 cm (8”) Single Bassreflex Subwoofer System

ESX DBX108Q

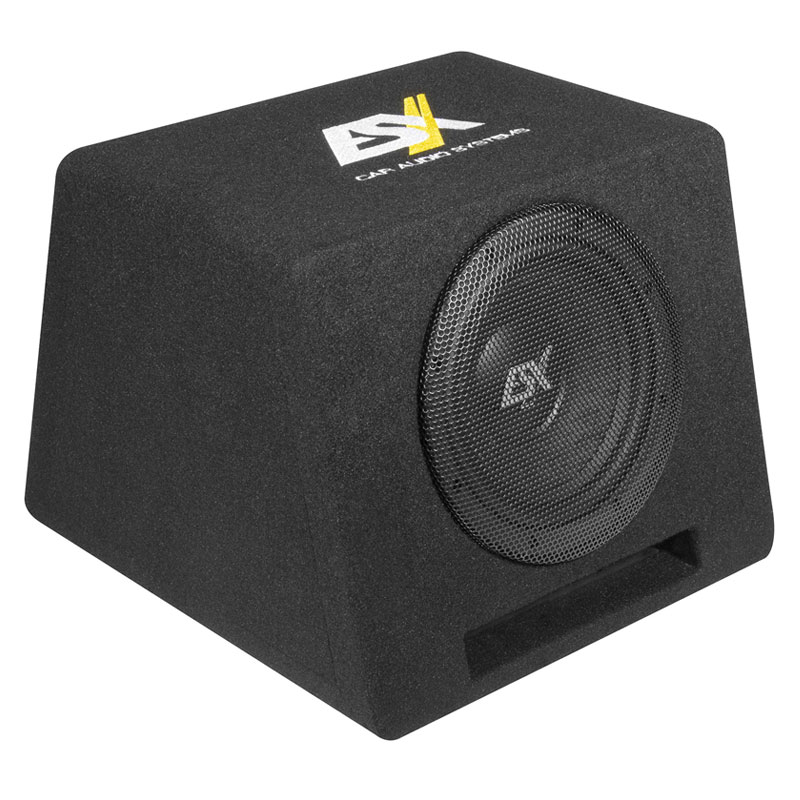

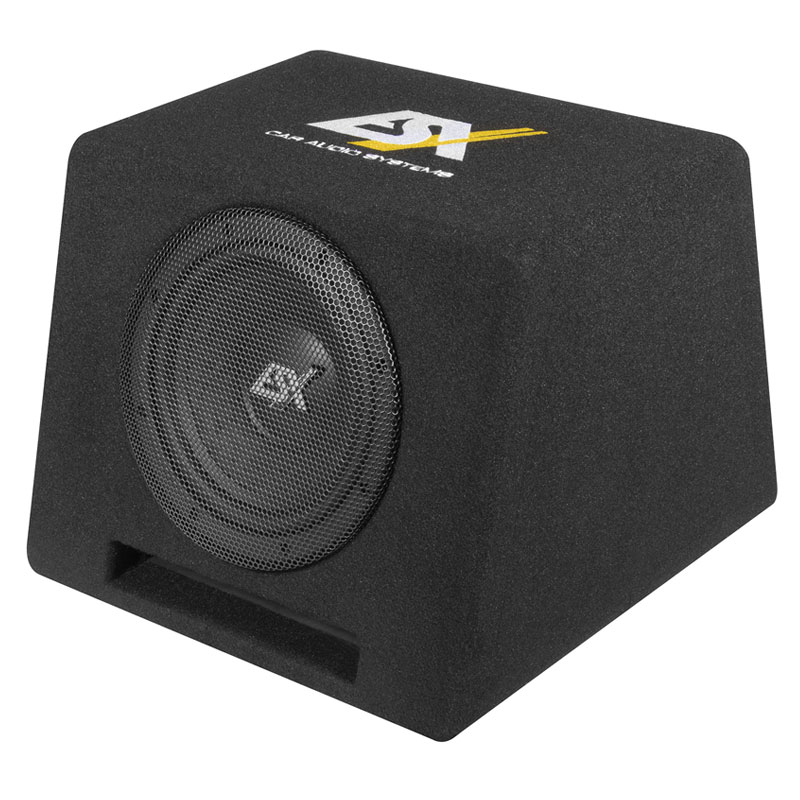

The ESX DBX SERIES bassreflex systems with trapezoidal housing are all equipped with protective grilles that optimally protect the high-quality woofers with their paper cone. These are equipped with a heavy-duty 50 mm voice coil (DBX206 38 mm) and provide powerful basses. Specially the two small dual subboxes turn on powerful and offer for their compact dimensions enormous amount of bass fun.

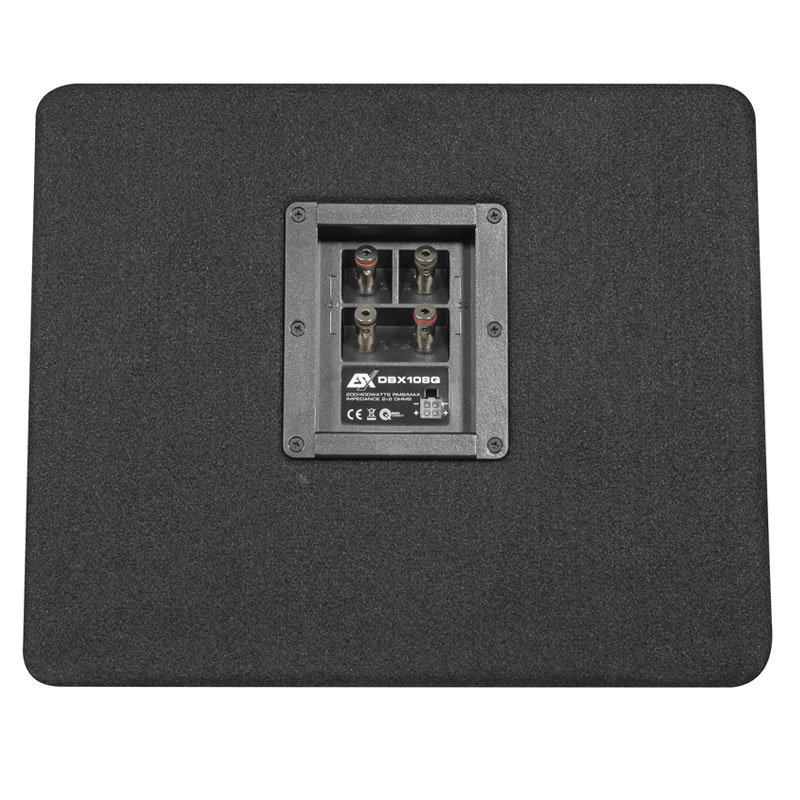

Besides the conventional connection sockets, where the 2+2 Ω output can also be wired to a single 4 or even 1 Ω output, the box also has the new and innovative Quick Connect socket, which enables a plug+play connection with each amplifier via a 4 -fold Molex socket. This requires special Quick Connect subwoofer cables, available in 4 different lengths.

Specifications

• 20 cm (8”) Single Bassreflex System
• Power Rating 200/400 Watts RMS/Max.
• Impedance 2+2 Ω
• 50 mm (2″) Voice Coil
• Subwoofer with Scooped Paper Cone
• Subwoofer Protection Grille
• High-quality Logo Embroidery
• Robust Carpet Cover
• Quick Connect Socket
• Dimensions 36 x 29 x 38/24 cm
