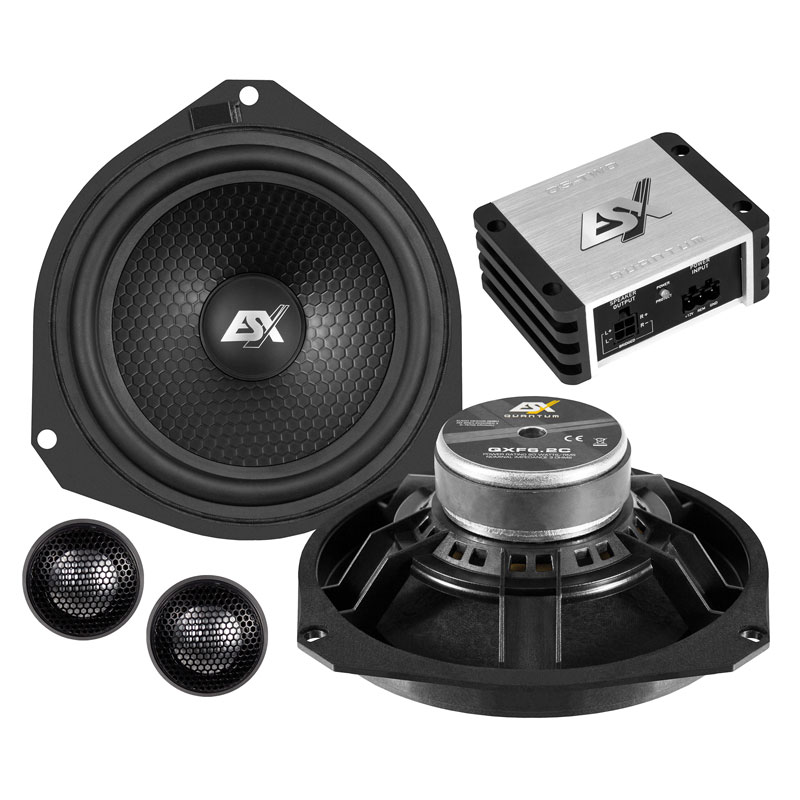

ESX QXFA6.2C 6″ 2-Way Component Speaker With 2-Channel Nano Amplifier

ESX QXFA6.2C

With the precisely fitting QUANTUM QXF6.2C 2-way speaker system for the popular Fiat Ducato platform, a sound upgrade can be implemented quickly and easily via plug & play installation. The improvement over the original speakers is amazing and ensures optimal and relaxed sound, especially on long journeys. The lightweight bass-midrange speakers with ABS basket fit perfectly into the original openings of the vehicle without additional adapter rings.

These deliver powerful bass down to 50 Hz. At the top of the basket there is an integrated socket to connect the original speaker cables in the vehicle. With an astonishing efficiency of 93 dB and a load impedance of 3 Ω, the component set is a joy to play on any radio or amplifier. The 25 mm neodymium tweeters with aluminum dome play crystal clear and expand the sound reproduction of the bass-midrange speakers up to 24,000 Hz. The 6 dB cable splitter is already integrated in the connection cable of the tweeters, which ensures a clean separation at 3800 Hz.

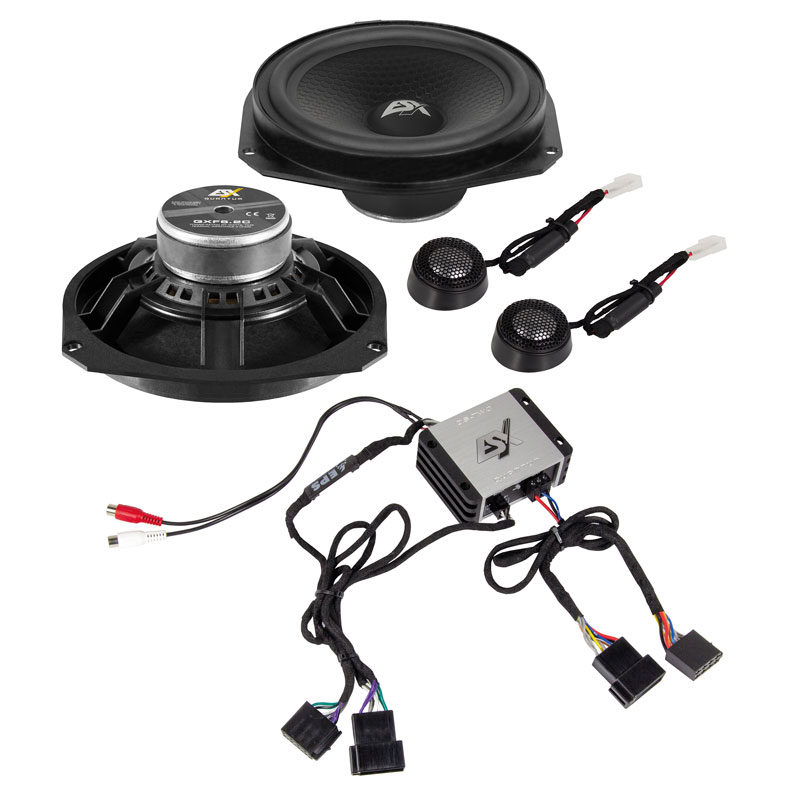

Conventional standard radios often only have a few watts of output power. If you want to get more power out of the ESX system, you should explore the potential of the highly resilient QXF6.2C with more power. However, installing an additional amplifier can be very time-consuming and take up a lot of space in the vehicle. The QS-TWO-ISO amplifier set from ESX offers an easy-to-install and optimal solution for this. The fist-sized 2-channel amplifier takes up little space and can be easily connected via Plug & Play with the ISO cable set provided. In addition, the digital amplifier has extra cinch outputs so that an additional active subwoofer can be controlled.

QXF6.2C Specifications

• 16 cm (6″) 2-Way Component System
• 90 Watts/RMS, 180 Watts/Max., Impedance 3 Ω
• Frequency Range 50 – 24000 Hz

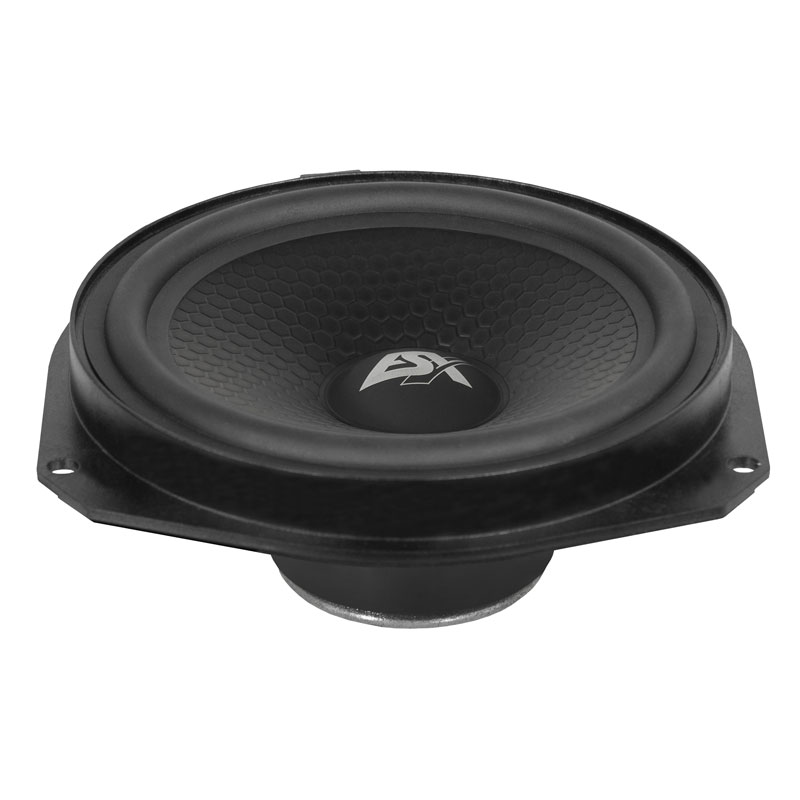

• 160 mm Midbass Speakers with fiber-reinforced Cone
• 25 mm Aluminum Tweeters
• 6dB Cable Crossovers
• Installation diameter 155 mm, Installation depth 51 mm

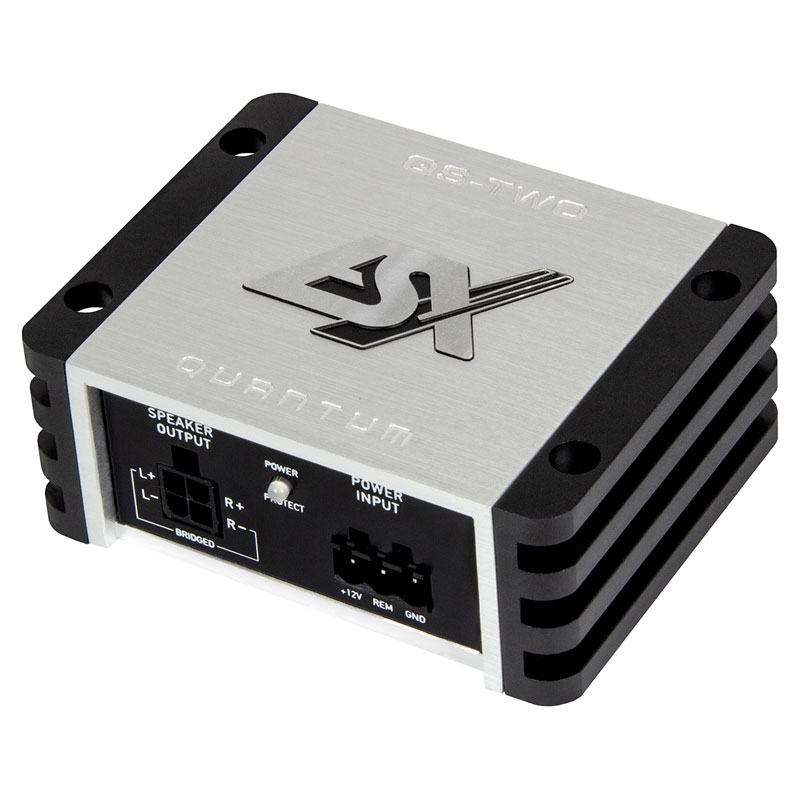

QS-TWO-ISO Specifications

• 2-Channel Class D Nano Amplifier
• 2 x 52/95 Watts RMS @ 4/2 Ω
• 1 x 190 Watts RMS @ 4 Ω bridged
• HPF/LPF switchable @ 80 Hz
• Frequency Range 10 Hz – 60 kHz
• RCA Line Out for e.g. active Subwoofers
• High Level Inputs with EPS®
• Auto Turn-On Function
• Up to 90% Efficiency
• Dimensions 70 x 35 x 90 mm

Compatibility

• Fiat Ducato F8 (2021+)
• Fiat Ducato III (Type 250, 2006+), Ducato IV (Type 290, 2015+)
• Citroën Jumper II (Type 250, 2006+), Jumper III (Type 290, 2015+)
• Peugeot Boxer II (Type 250, 2006+), Boxer III (Type 290, 2015+)
• Opel Movano III (10/2021+)
• Ford Ka II ( 2009-2016)
