ESX QXT6.2C Quantum Series (6″) 2-Way Component Speaker For Ford

ESX QXT6.2C

ESX offers a speaker system for the door area that is easy to retrofit for the very popular Ford Transit & Tourneo motorhomes. The 2-way component system from the QUANTUM series is highly resilient with 90 or 180 watts and provides the best musical accompaniment, especially on long journeys. The lightweight mid-woofers with ABS basket fit perfectly into the vehicle’s original openings without additional adapter rings. There is an integral socket in the basket to accept the factory original cable plugs.

The mid-bass driver with a reinforced and water-repellent membrane is equipped with a very large, 13-ounce ferrite magnet. The lavish magnet driver, together with the deliberately low impedance of 3 ohms, leads to a very good efficiency of 93 dB at 2.83V/1m. In combination with the tried-and-tested 25 mm silk dome tweeter with neodymium driver, the QXT6.2C component system develops an incredibly lively joy of playing on any radio or amplifier.

Specifications

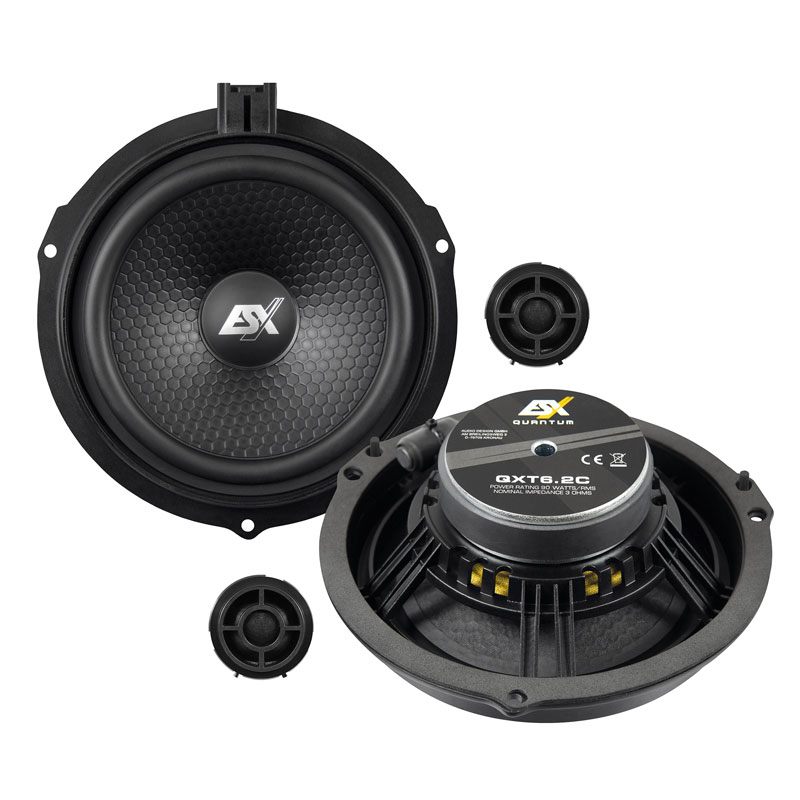

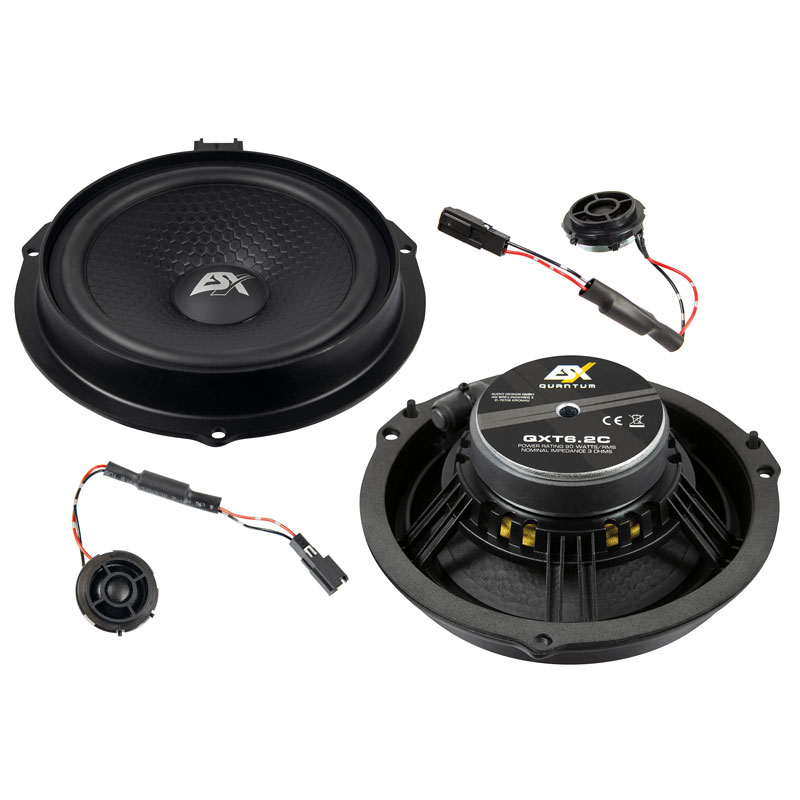

• 16 cm (6″) 2-Way Component System
• 90 Watts/RMS, 180 Watts/Max., Impedance 3 Ω
• Frequency Range 50 – 24000 Hz

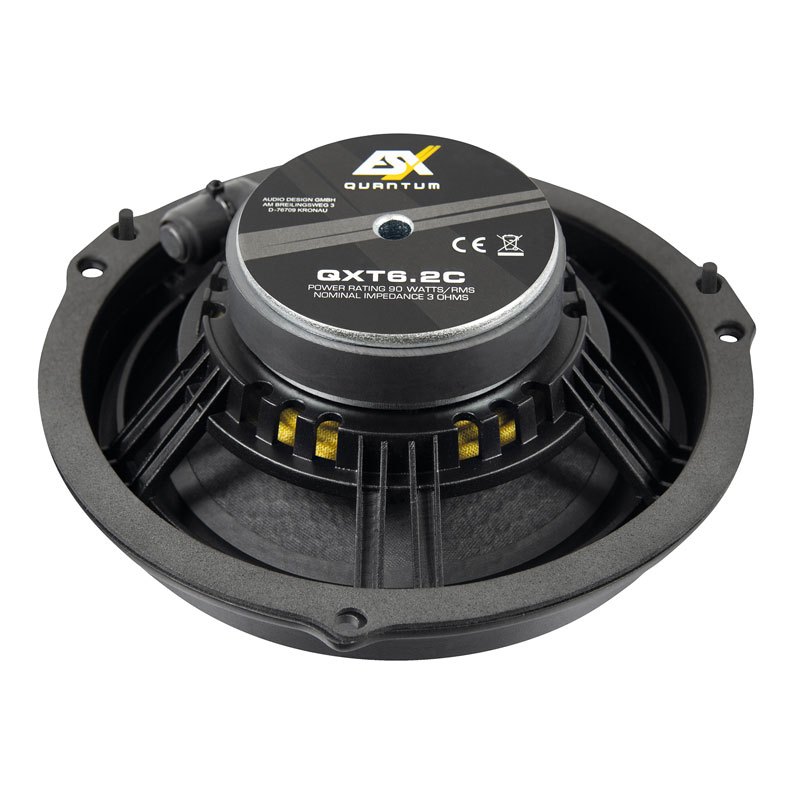

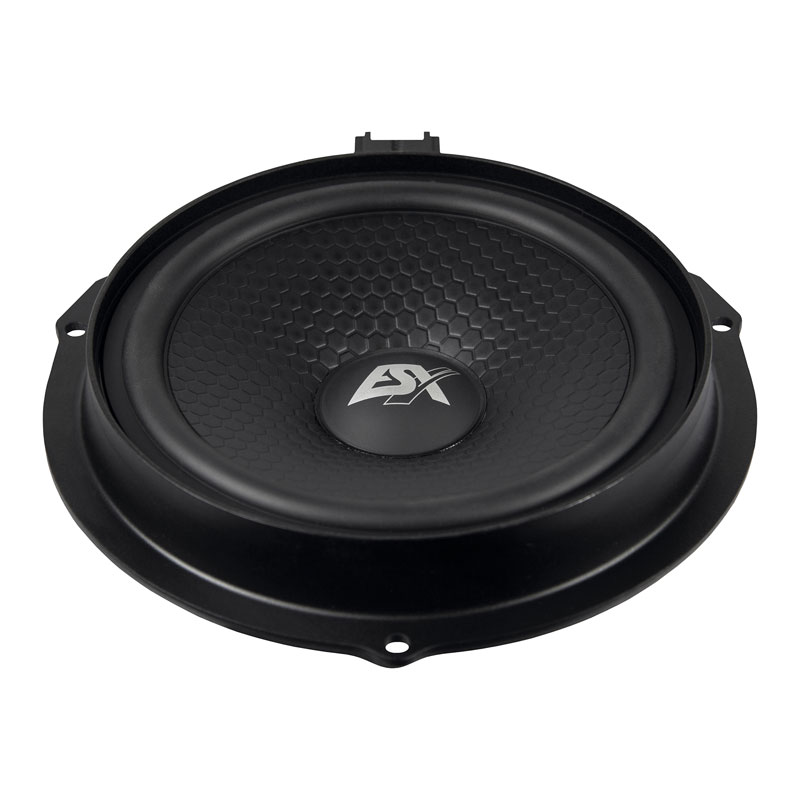

• 160 mm Midbass Speakers with fiber-reinforced Cone
• 25 mm Silk Dome Neodymium Tweeters
• Integrated 6dB Crossovers for Midbass Speakers

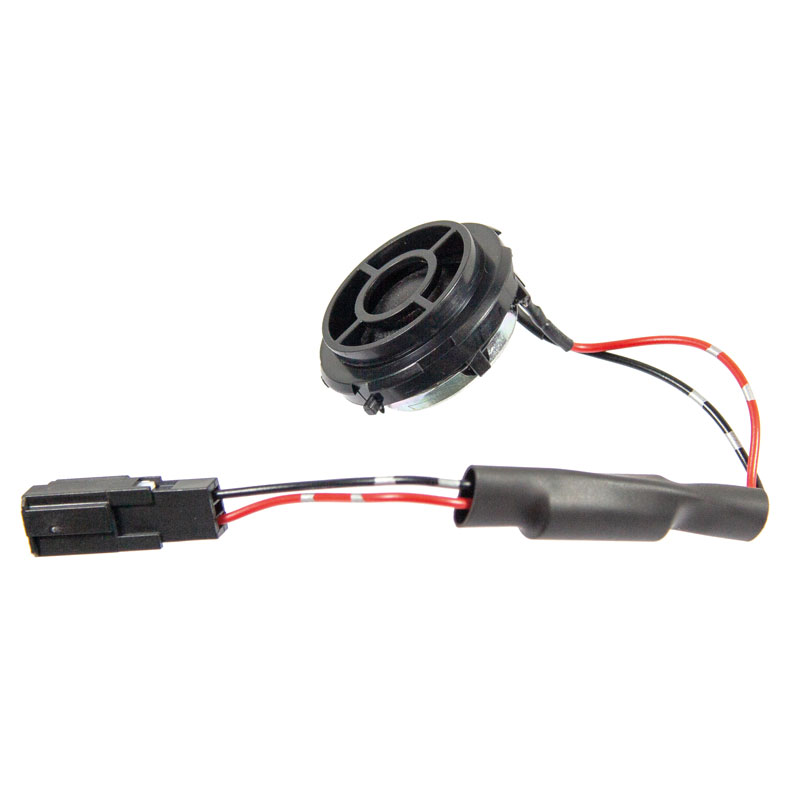

• 6dB Cable Crossovers for the Tweeters
• Installation diameter 166 mm, Installation depth 44 mm

Compatibility

• Ford Transit 2014 +
• Ford Tourneo 2016+
• Ford B-MAX 10/2012+
• Ford C-MAX II (Gen 2) 12/2010 – 06/2019
• Ford EcoSport 10/2013+
• Ford Fiesta VI (Gen 4) 06/2008 – 04/2017
• Ford Focus II (Gen 2) 04/2005 – 09/2012
• Ford Focus III (Gen 3) 07/2010 – 02/2020
• Ford Galaxy 05/2006 – 06/2015
• Ford Grand C-MAX 12/2010 – 06/2019
• Ford Grand Tourneo Connect 11/2013+
• Ford Kuga II (Gen 2) 03/2013 – 06/2019
• Ford Ranger 2012 – 2021
• Ford S-MAX 05/2006 – 12/2014
• Ford Transit Bus 08/2013 – 12/2018
• Ford Tourneo Connect 11/2013+
• Ford Transit Connect Van 02/2013+
• Ford Transit Connect Kombi 02/2013+
• Ford Transit Ford Van 08/2013 – 12/2018
• Ford Transit V363 Bus 05/2019+
• Ford Transit V363 Van 05/2019+
• Ford Transit Custom Bus 04/2012+
• Ford Transit Custom Van 09/2012+
• Ford Transit Custom V362 05/2019+
• Ford Transit Custom V362 Van 05/2019+
• Ford Tourneo Courier Kombi 04/2012+
• Ford Tourneo Custom Bus 04/2012+
• Ford Tourneo Custom V362 Bus 05/2019+
