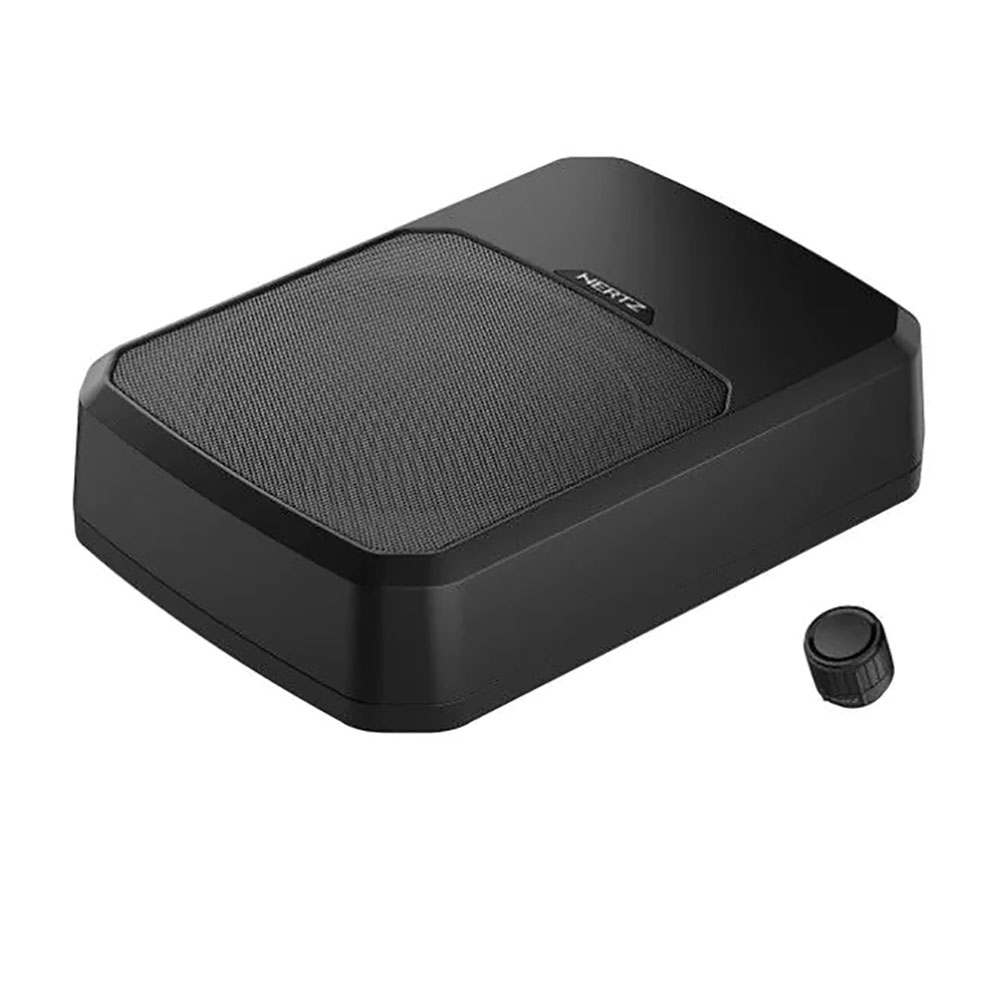

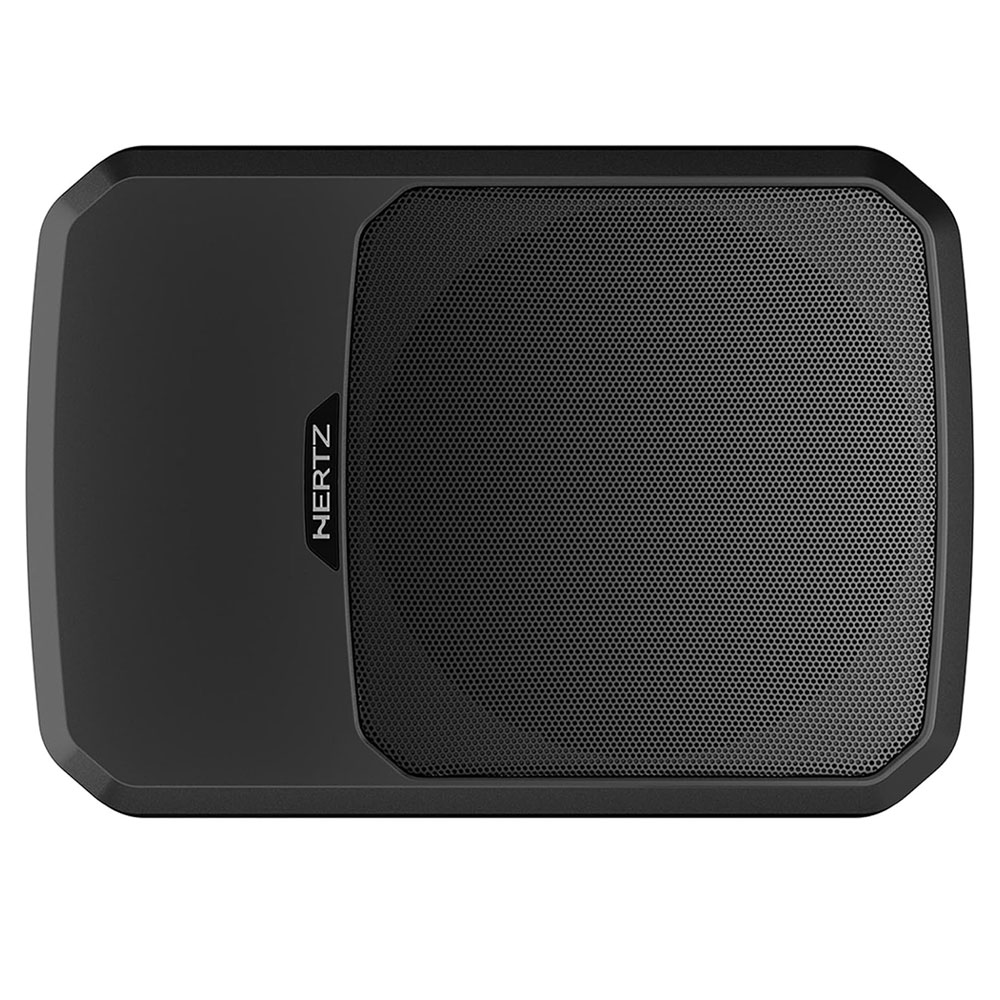

Hertz DBA 201F Flat Sealed Active Underseat Space Saving Subwoofer 440W

Hertz DBA 201F

High Performance In A Super Flat Design

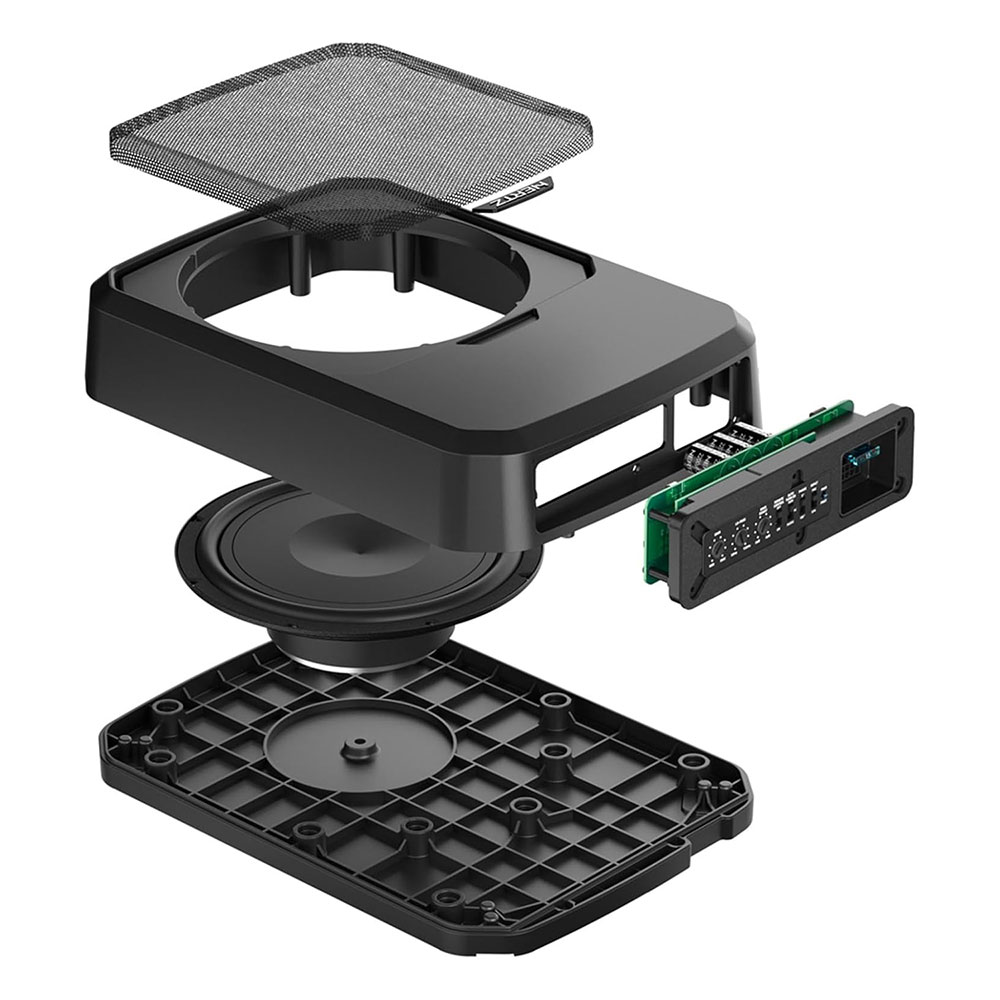

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

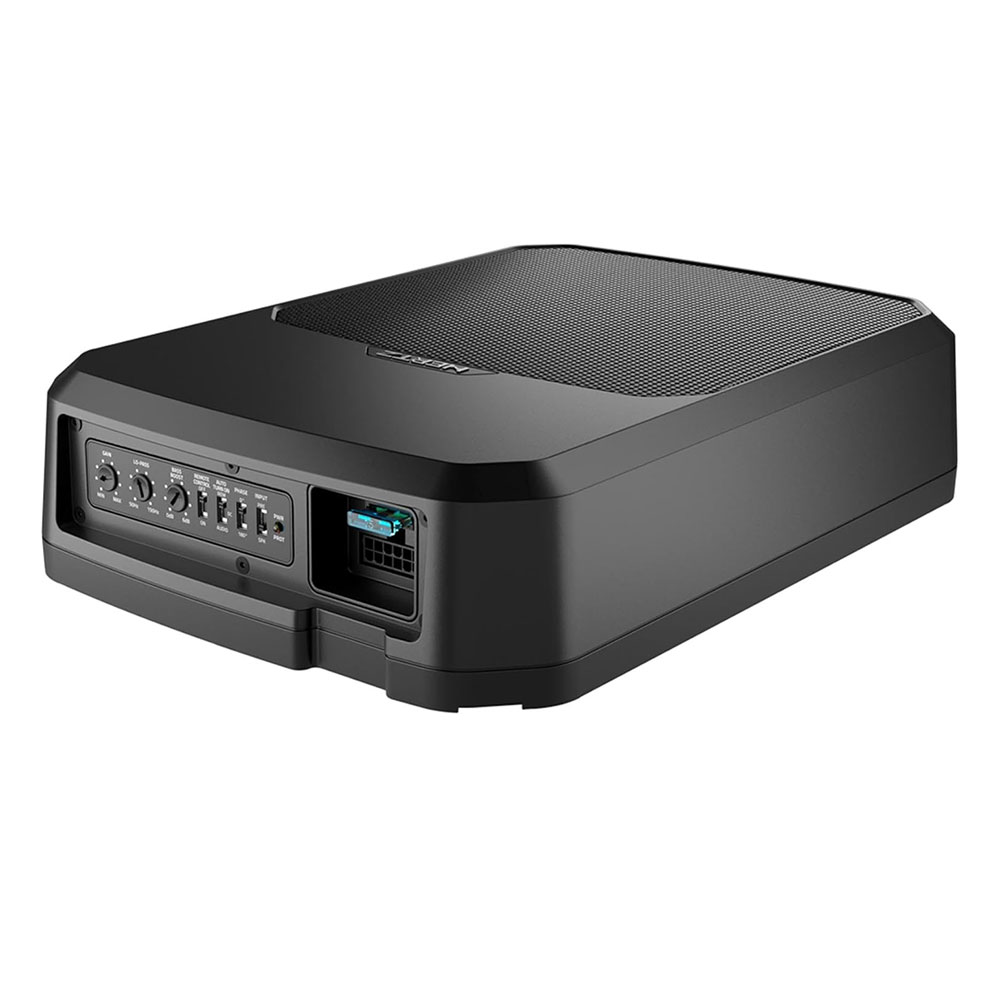

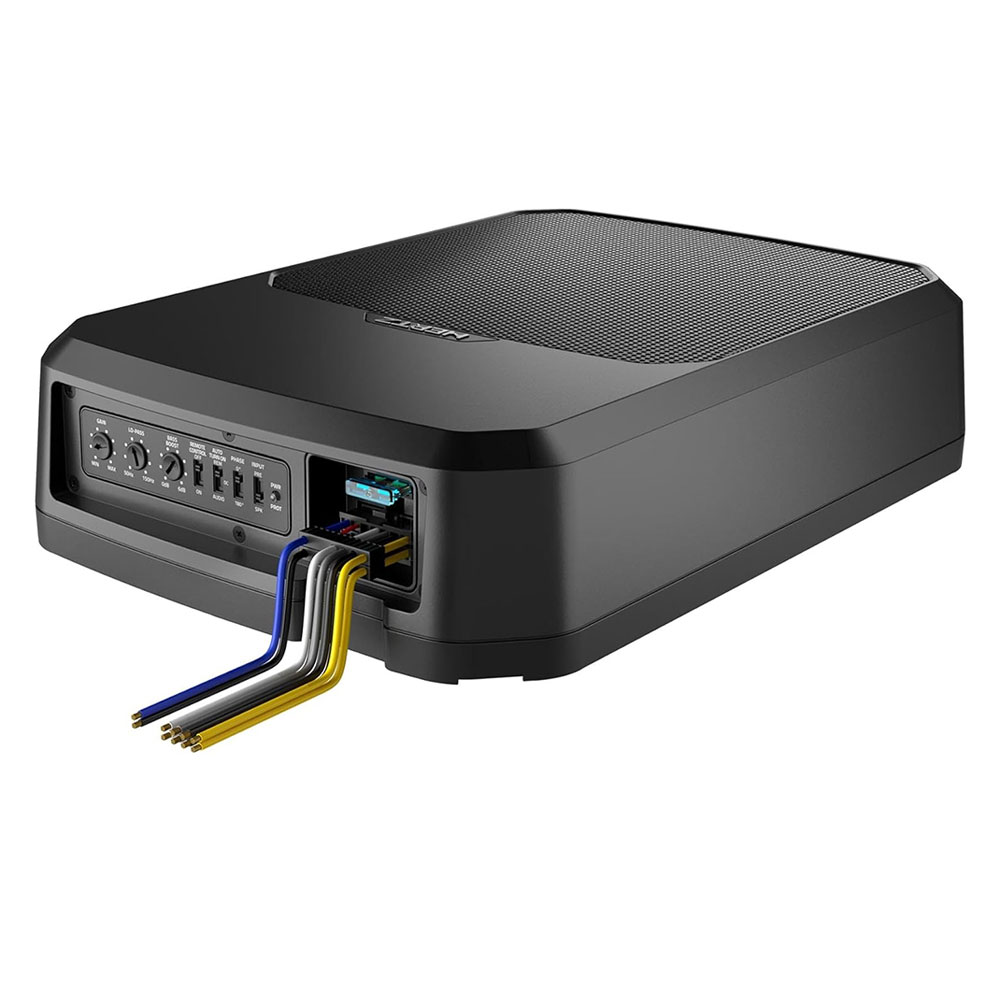

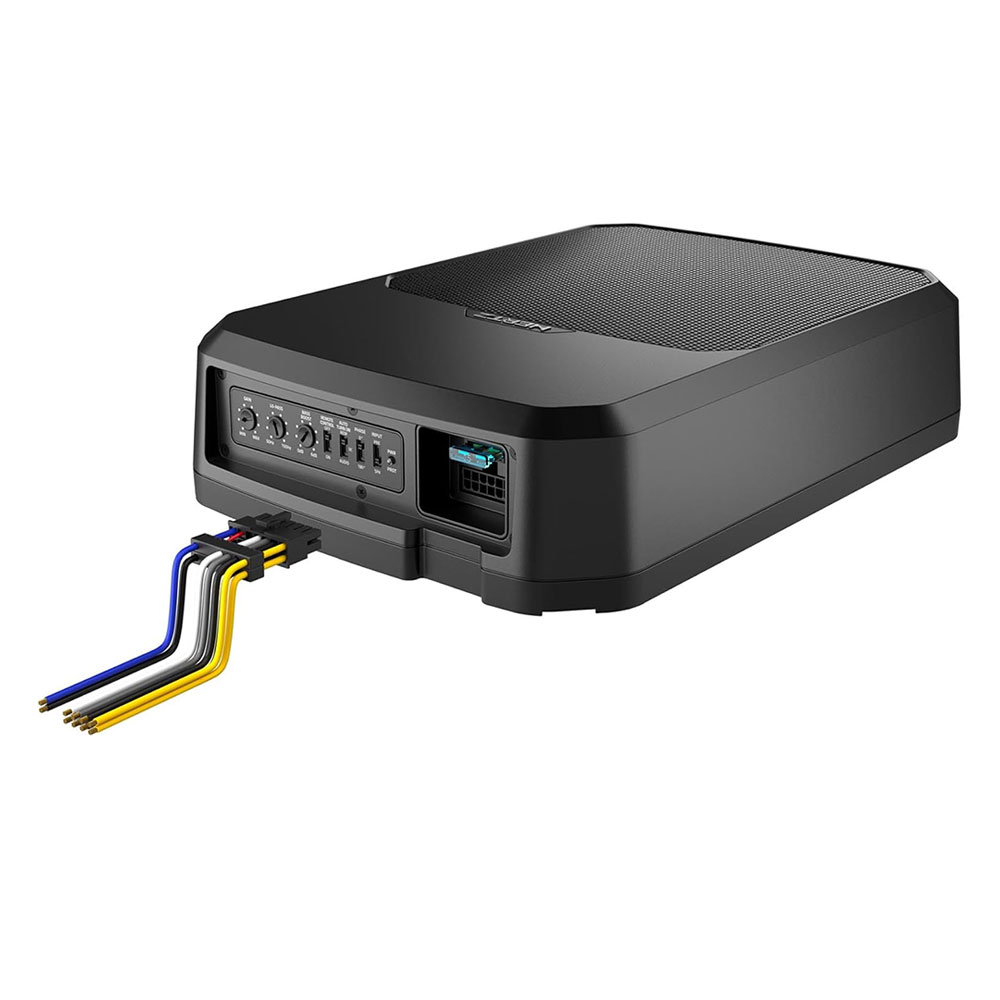

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

HRC 01 Bass Controller Included

DBA 201 F level can be adjusted (-15 dB ÷ 0 dB) using the new stylish HRC 01 remote control. HRC 01 is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.

Specifications

• Size mm (in.) – 200 (8)
• Power Handling – Continuous W – 220
• Power Handling – Peak W – 440
• Impedance Ohm – 0.4
• Design – Super Flat Sealed
• Voice Coil Ø – 38.6 (1.52) mm (in.)
• Frequency Response Hz – 32 ÷ 400
• Magnet size D x d x h mm (in.) – 110 x 45 x 17 (4.33 x 1.78 x 0.67)
• Weight of one component kg (lb.) – 4.3 (9.48)
• Magnet – High Density Flux Ferrite
• Cone – Pressed paper
• Voice Coil Type – Copper
• Distortion – THD @ 100 Hz % – 0.15
• Bandwidth Hz – 15 – 150
• S/N ratio dBA – 100
• Output power (RMS) @ 14,4 VDC, 1% THD W – 220
