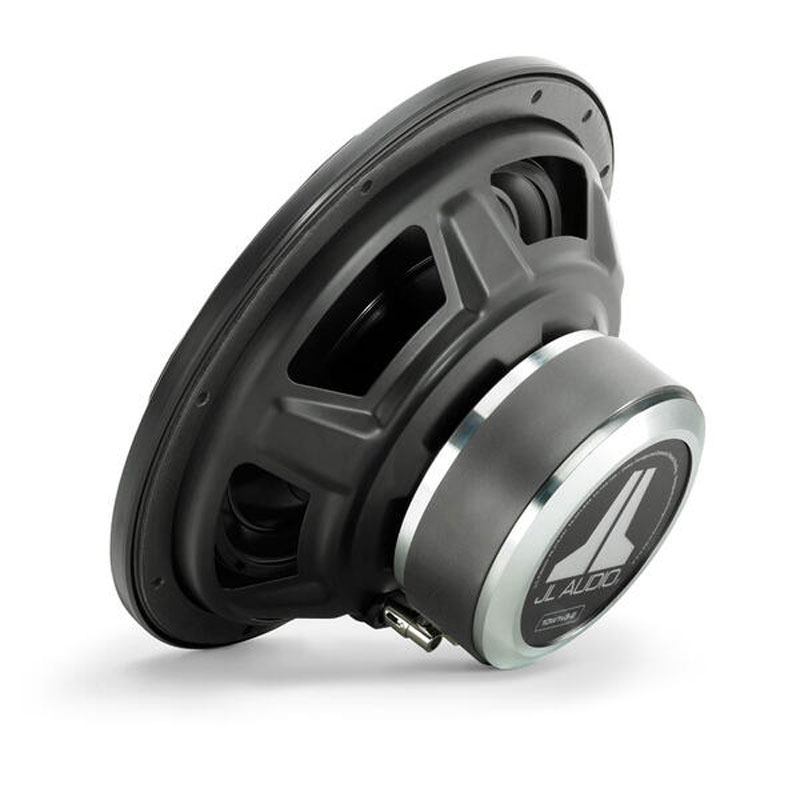

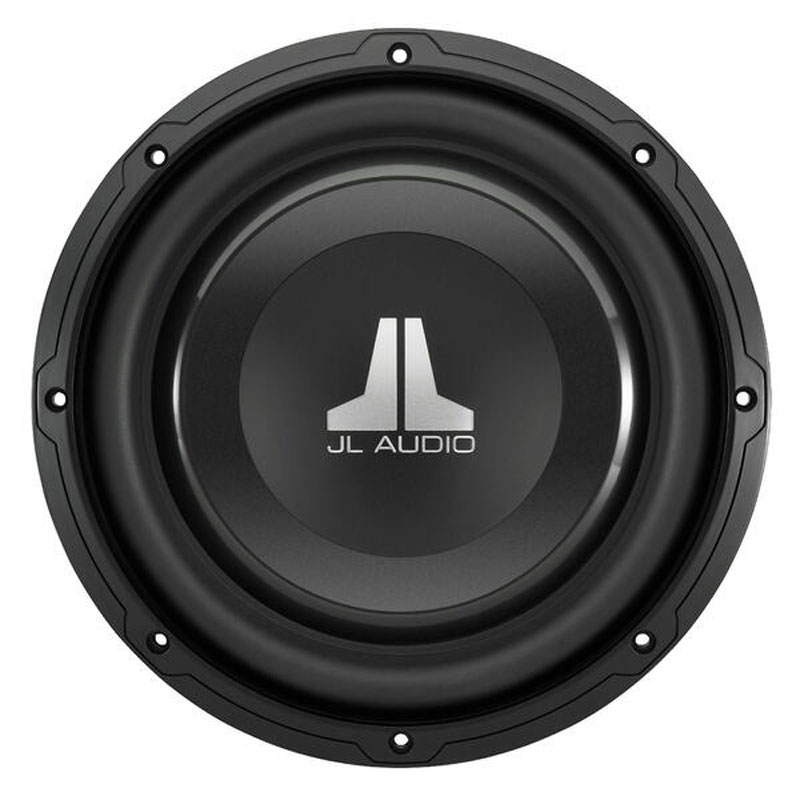

JL Audio 10W1v3-2 – 10″ W1v3 Series Shallow-Mount Subwoofer

JL Audio 10W1v3-2 – 10″ (250 mm) Subwoofer Driver

W1v3 10-inch Subwoofer (300 W, 2 Ω)

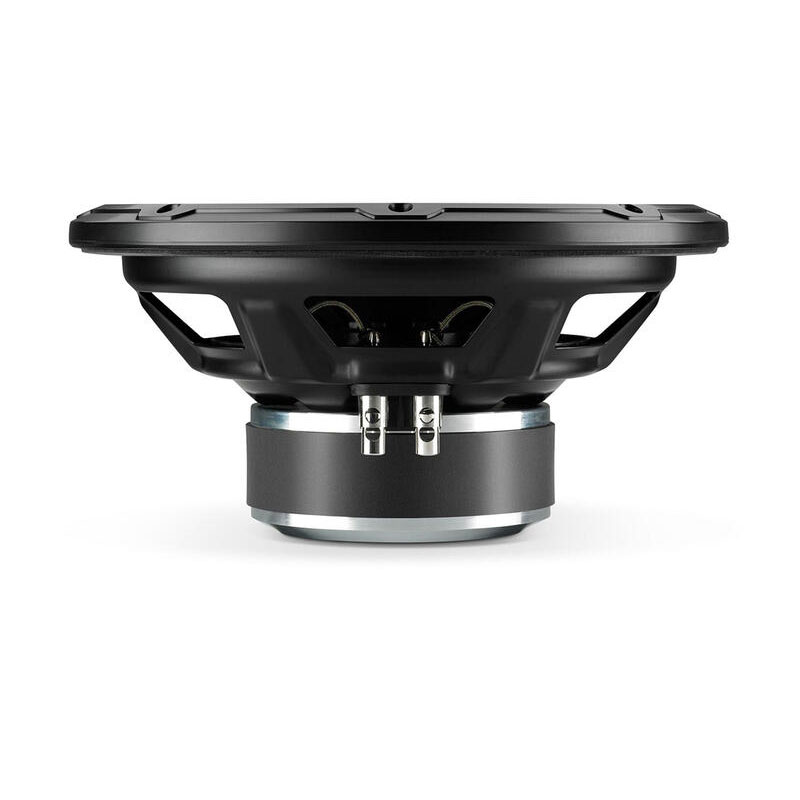

The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio’s proprietary technologies enhance its performance and reliability.

The 10W1v3-2 is best used with amplifier power in the 75W – 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.

Specifications

• Continuous Power Handling (RMS): 300 W
• Recommended Amplifier Power (RMS): 75 – 300 W
• Nominal Impedance (Znom): 2 Ω
• Product dimensions: 267 x 267 x 117 mm
