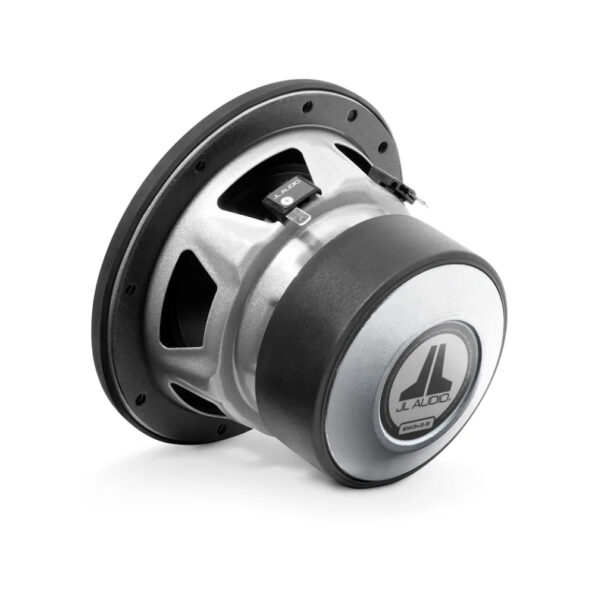

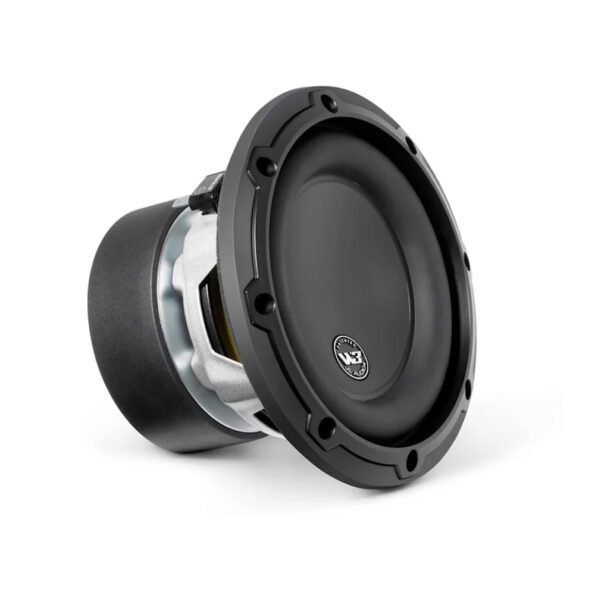

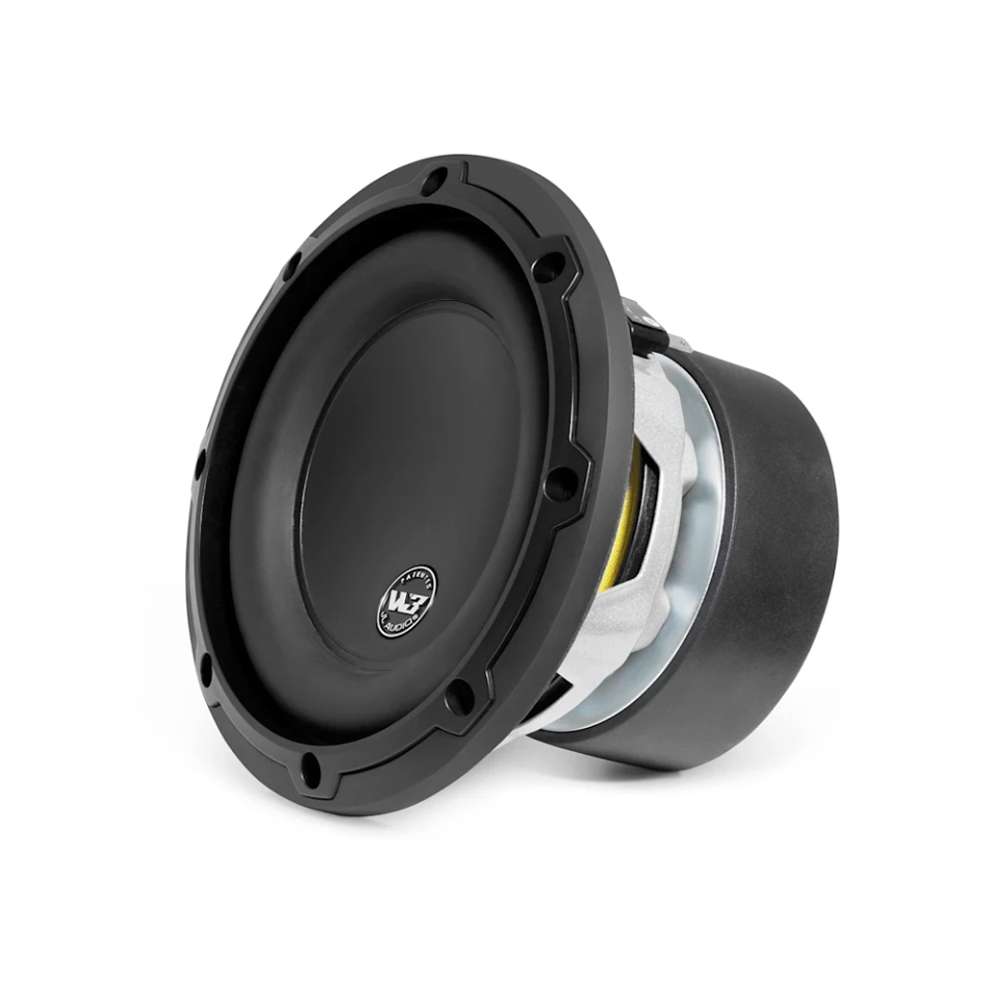

JL Audio 6W3v3-4 6.5″ (165 mm) Car Subwoofer Driver (150W, 4 Ω)

JL Audio W3v3 6.5-inch Subwoofer (150 W, 4 Ω)

If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.

The 6W3v3-4 is best used with amplifier power in the 50W – 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure.

Clearly the best sounding W3’s yet, these subwoofers feature DMA-optimized, long linear excursion capability to minimize distortion and increase output. W3v3’s are available in single 2 ohm, 4 ohm and 8 ohm versions (6W3v3 available in 4 ohm and 8 ohm only) and are superb performers at medium power levels in compact sealed or ported enclosures.

Multiple patented technologies enhance performance and reliability. As with JL Audio’s flagship drivers, development was guided by JL Audio’s proprietary DMA (Dynamic Motor Analysis) modeling system to deliver outstanding dynamic stability and low-distortion operation within their intended power envelope.

Specifications

• Free Air Resonance (Fs): 41.80 Hz
• Electrical “Q” (Qes): 0.533
• Mechanical “Q” (Qms): 11.027
• Total Speaker “Q” (Qts): 0.508
• Equivalent Compliance (Vas): 0.181 cu. ft. / 5.13 litres
• One-Way, Linear Excursion (Xmax)*: 0.35 in. / 8.89 mm
• Reference Efficiency (no): 0.07%
• Efficiency (1W/1m)**: 80.49 dB SPL
• Effective Piston Area (Sd): 17.36 in. sq. / 0.0112 sq. m
• DC Resistance (Re): 3.476 ohm
• Nominal Impedance (Znom): 4 ohm
• Thermal Power Handling (Pt): 150W
• Driver Displacement: 0.03 cu. ft. / 0.85 liters
• Net Weight: 6.1 lbs. / 2.8 kg

In The Box

• W3v3 subwoofer
• Trim ring (installed)
