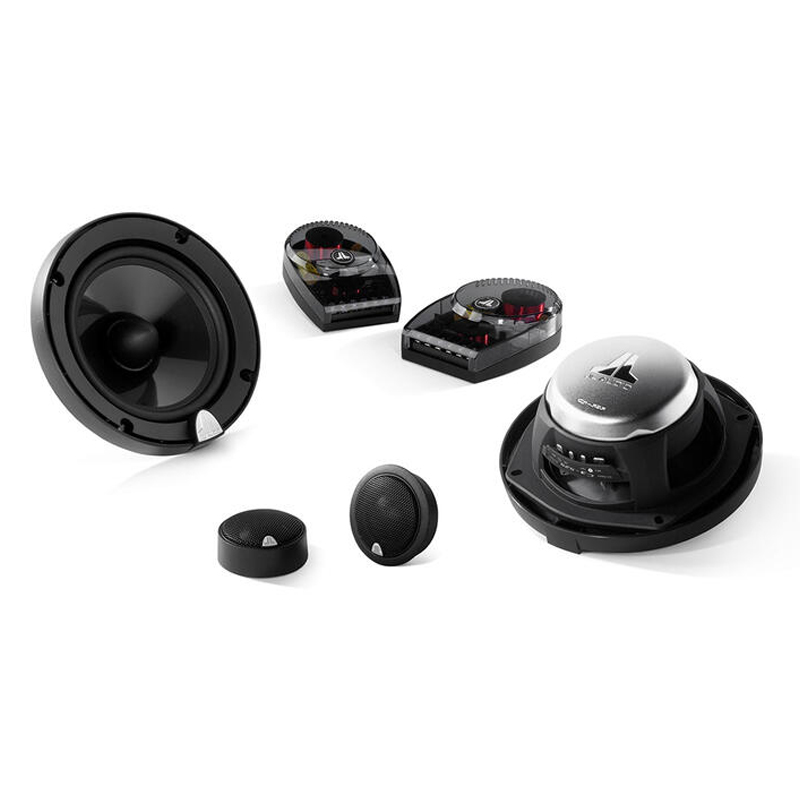

JL Audio C3-525 – 5.25″ (13 cm) Convertible Component / Coaxial Speaker System

JL Audio C3-525

2-Way Convertible Component / Coaxial System: 5.25-inch (130 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

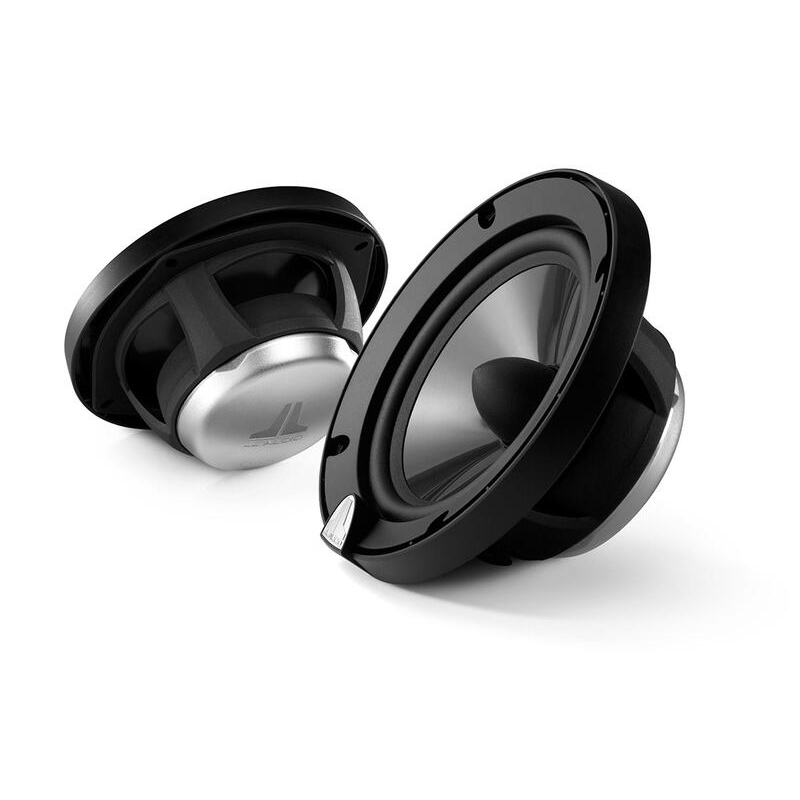

The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio’s vast woofer design experience and advanced modeling systems.

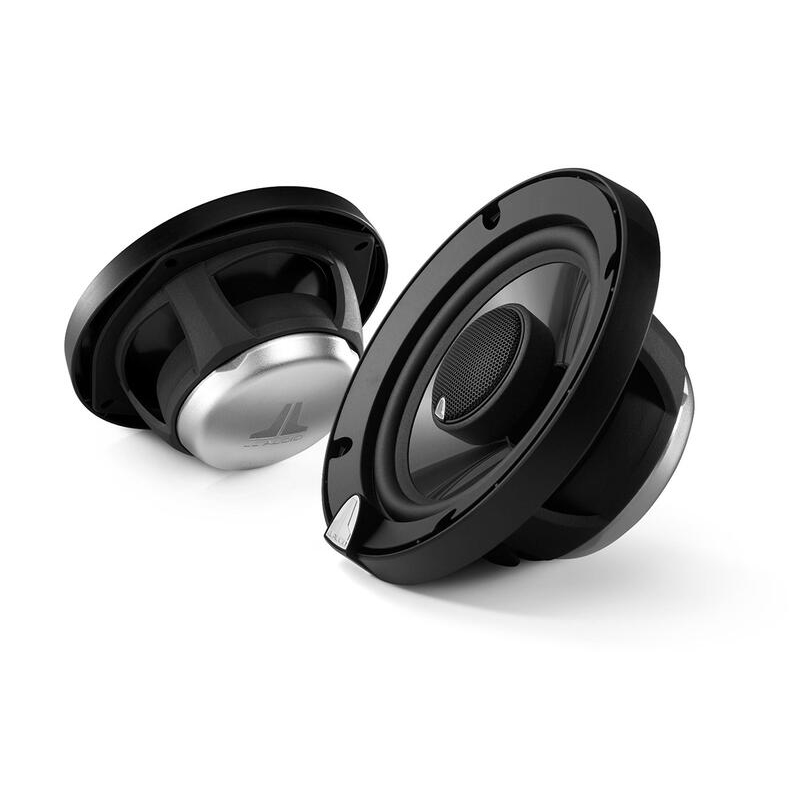

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sold as a pair.

Specifications

• Continuous Power Handling (RMS): 75 W
• Recommended Amplifier Power (RMS): 25 – 150 W / Ch.
• System Efficiency: 90.0 dB @ 1 W / 1 m
  System Nominal Impedance: 4 Ω
• System Frequency Response: 48 Hz – 25 KHz ± 3 dB
