JL Audio MX280/4 – 4-Channel Class D Full-Range Amplifier

JL Audio MX280/4 – 4-Channel Class D Full-Range Amplifier

4-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 Ω / 50 W x 4 @ 4 Ω – 14.4V

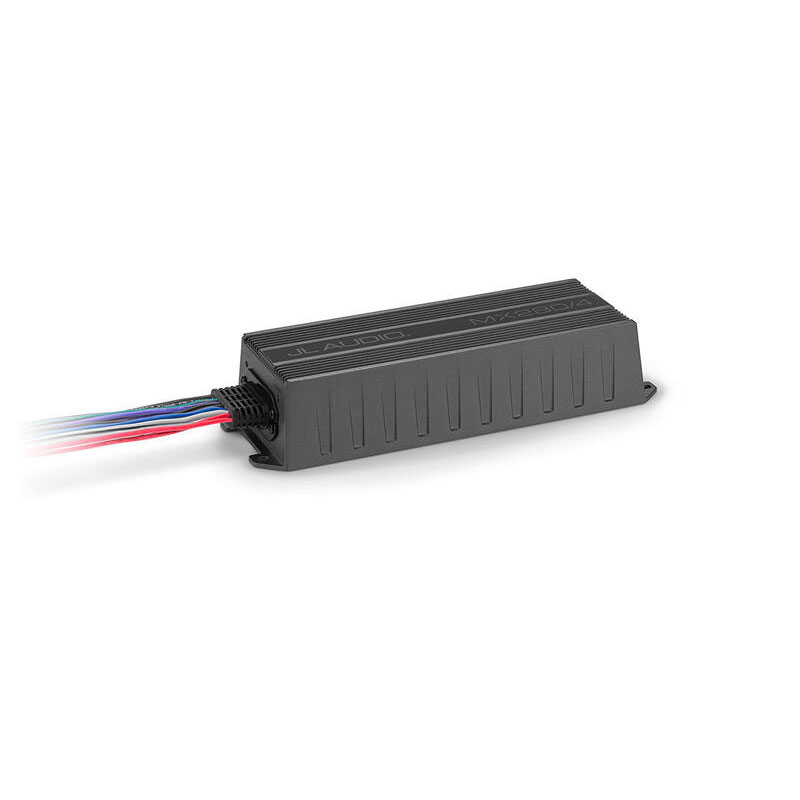

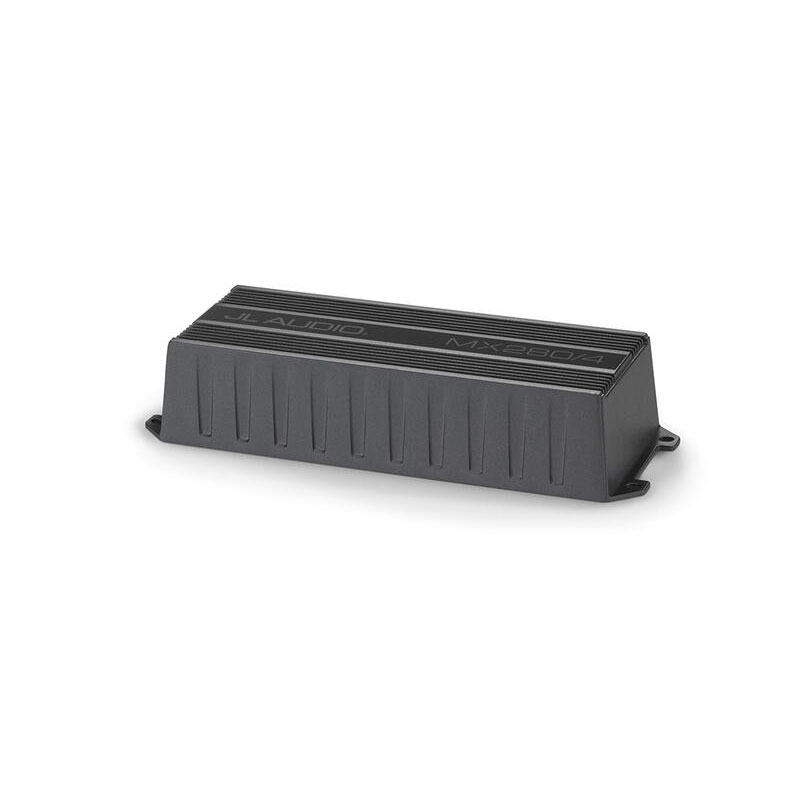

Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.

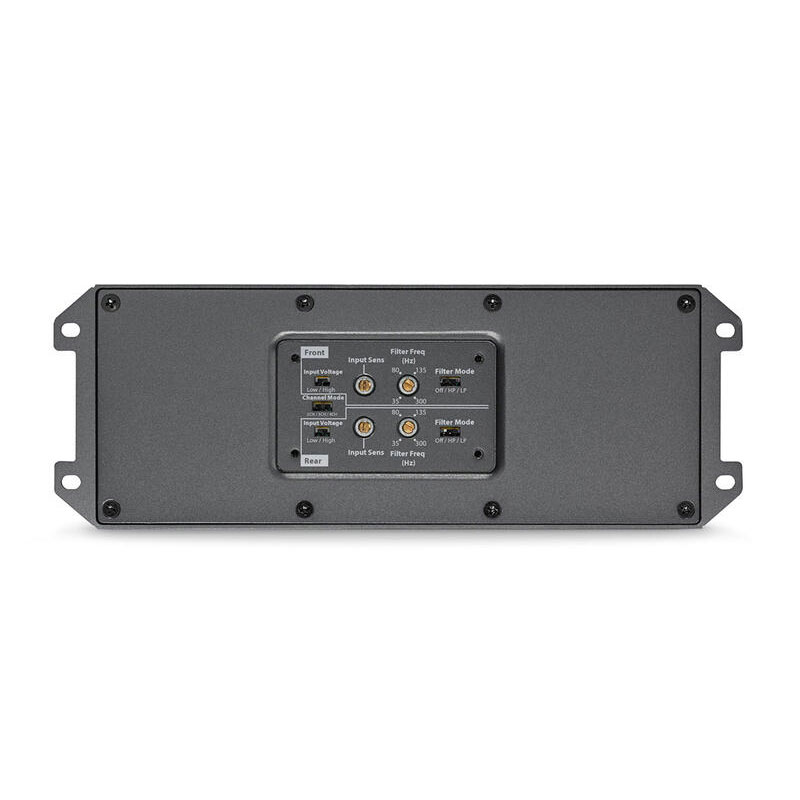

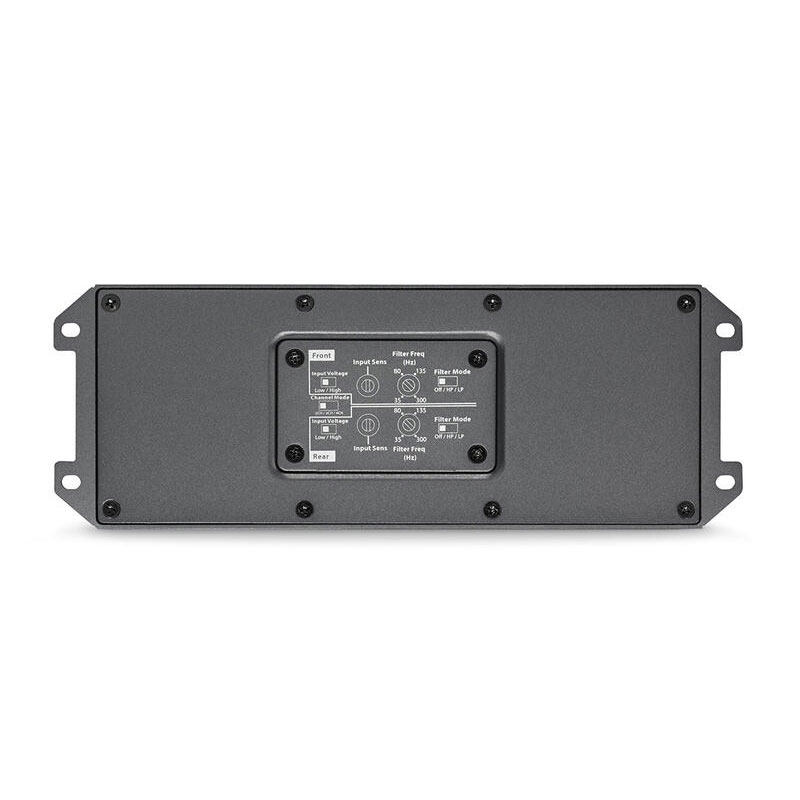

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

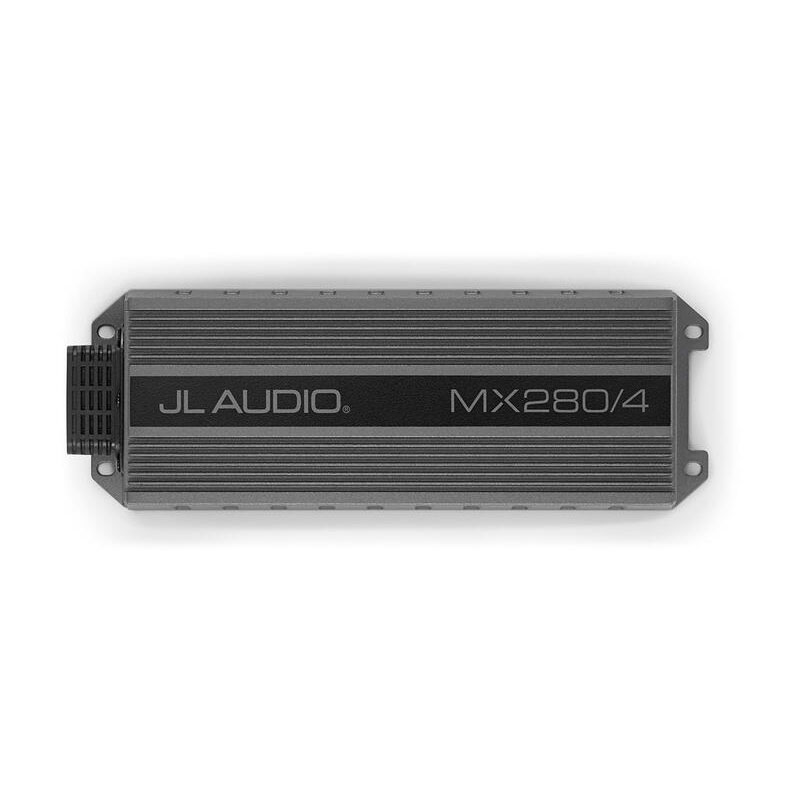

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Specifications

• Frequency Response: 20 Hz – 20 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power: > 89.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W: > 68 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 60 / 50 Hz
• Damping Factor @ 2 Ω: > 30 / 50 Hz
• THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: Switchable from 250 mV – 4 V RMS (Low) to 750 mV – 15 V RMS (High)
• Min. Copper Power / Ground Wire Gauge: 8 AWG wire
• Fuse Rating: 35 A (AFS, AGU or MaxiFuse™)
• Product dimensions: 220 x 45 x 79 mm
• Net weight: 1.44 kg
