JL Audio VX600/6i 6-Channel Class D Full-Range Amplifier with Integrated DSP

JL Audio VX600/6i Integrated Amplifier

6-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω – 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

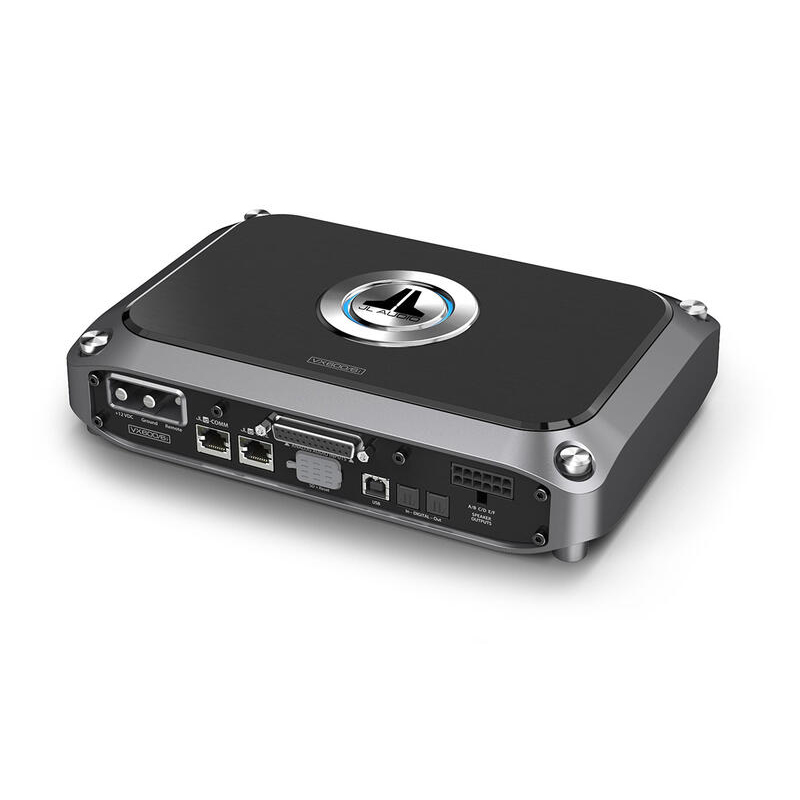

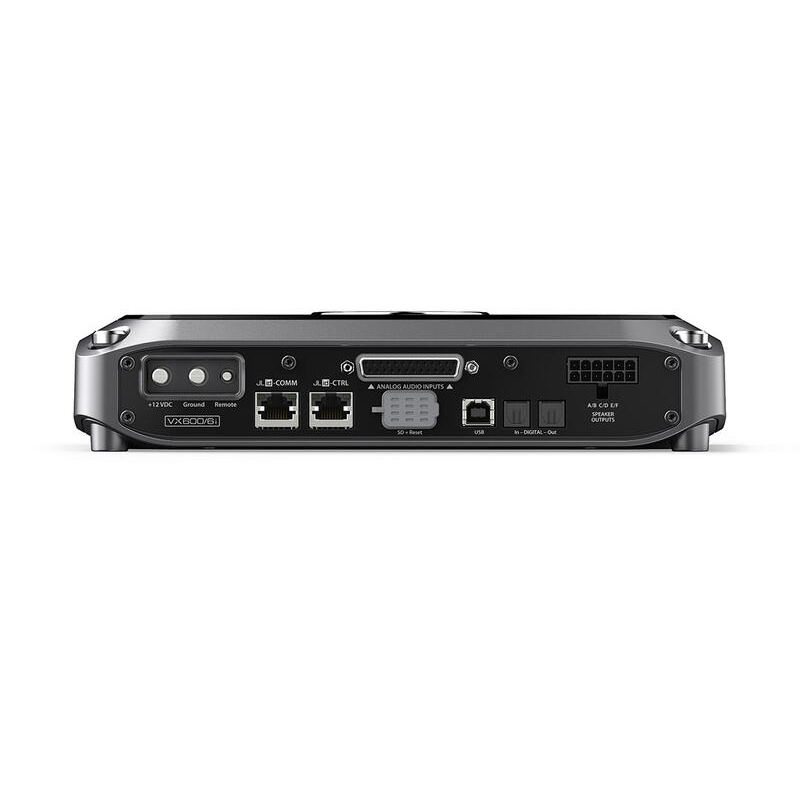

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input / Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable.

Specifications

• Frequency Response: 12 Hz – 21 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power (Analog Inputs): 99 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs): 80 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs): 99 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs): 80 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 100 / 50 Hz
• Damping Factor @ 2 Ω: > 50 / 50 Hz
• THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: 200 mV – 16 V RMS
• Min. Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
• product dimensions: 250 x 54 x 168 mm
• net weight: 2.50 kg
