Kicker KA49ST3TW 1″ (25mm) Street Series Single Bullet Tweeter 4 Ohm

ST 1″ (25 mm) Street Series Bullet Tweeter 4 Ohm – Single

Experience sonic clarity like never before with the ST1TW 1 Tweeter. Perfect for competition-level SPL systems, this efficient, horn-loaded, aluminum-diaphragm tweeter delivers clear vocals and high-output bass. With versatile mounting options, its a must-have for audio enthusiasts.

Featuring an extremely efficient, horn-loaded aluminum diaphragm, the ST1TW 1″ Tweeter offers outstanding output and sonic clarity. This single-unit, PA (Pro Audio)-style tweeter is designed to meet the demands of competition-level SPL systems. Its voice is precisely tuned to provide clear vocals that seamlessly blend with high-output bass. With options for front or rear mounting and a range of trim bezel options, the ST1TW Tweeter ensures versatile installation possibilities.

ST-Series street/PA (Pro Audio)-style bullet tweeter.

• Extremely efficient, horn-loaded aluminum diaphragm for extreme output
• Single-unit, PA (Pro Audio)-style tweeter perfect for competition-level SPL systems
• Voiced for clear vocals to match with high-output bass
• Includes front or rear mount options, in addition to trim bezel options
• Spring-loaded terminals accept 16 AWG wire
• In-line 6dB crossover
• Field-replaceable voice-coil assembly available (ST3RK/ST4RK)

Specification:

• Single Tweeter: 1″ (25mm)
• Dome Material: Aluminum
• Design: Bullet
• Impedance: 4 Ohms
• Recommended Amp Power: 15-50 watts RMS
• Peak Power Handling: 100 watts
• Frequency Response: 3.5kHz-20kHz
• Sensitivity: 106 dB
• In-Line Crossover: 6dB, high-pass
• Mounting Depth: 1-3/16″ (30mm)
• Mounting Diameter: 2-5/16″ (58mm
• Thread Length: 1-1/16″ (27mm)
• Thread Diameter: 1-11/16″ (43mm)

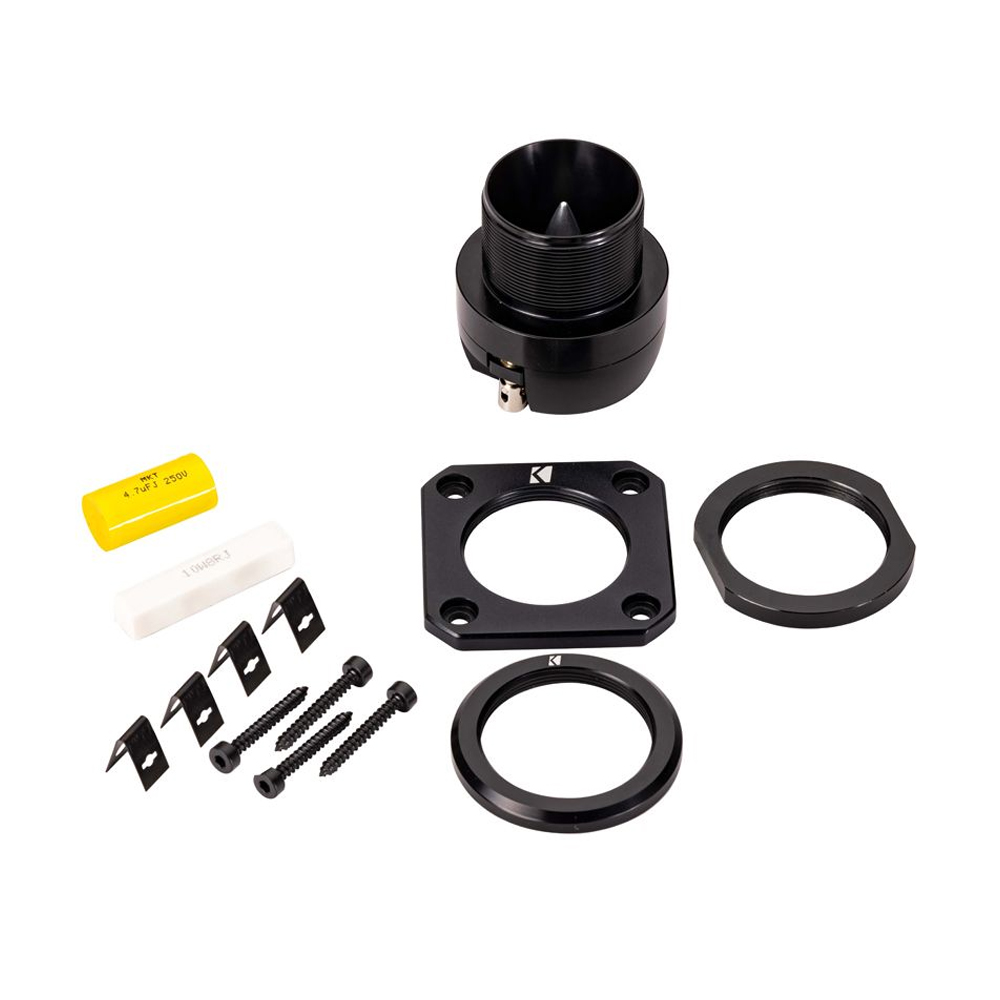

In the Box

• 1 – Tweeter
• 1 – Round Mounting Flange
• 1 – Backing Nut
• 1 – Square Mounting Flange
• 4 – Mounting Screws
• 1 – Capacitor
• 1 – Resistor
