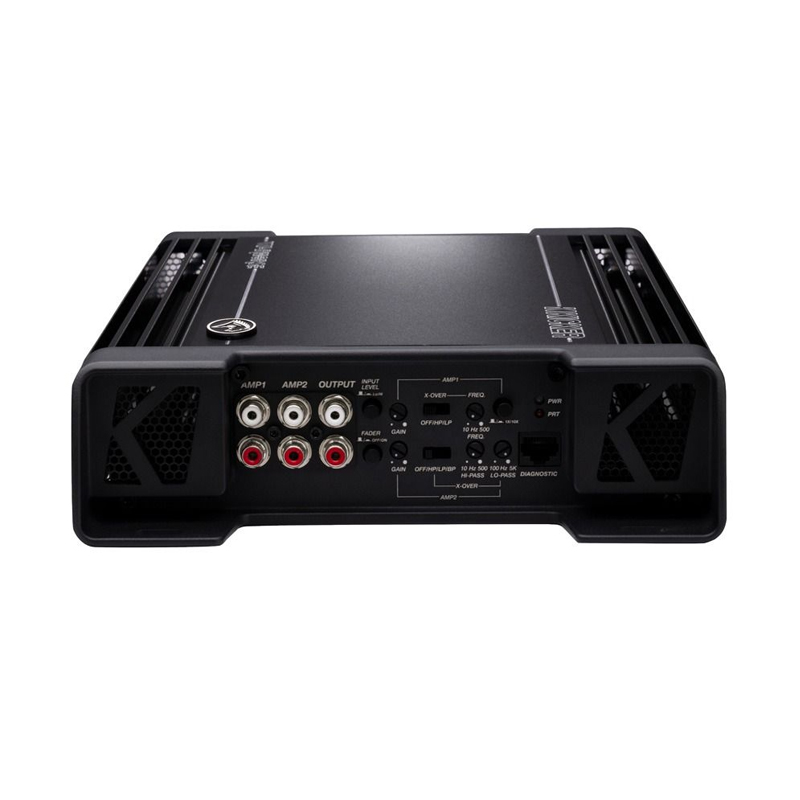

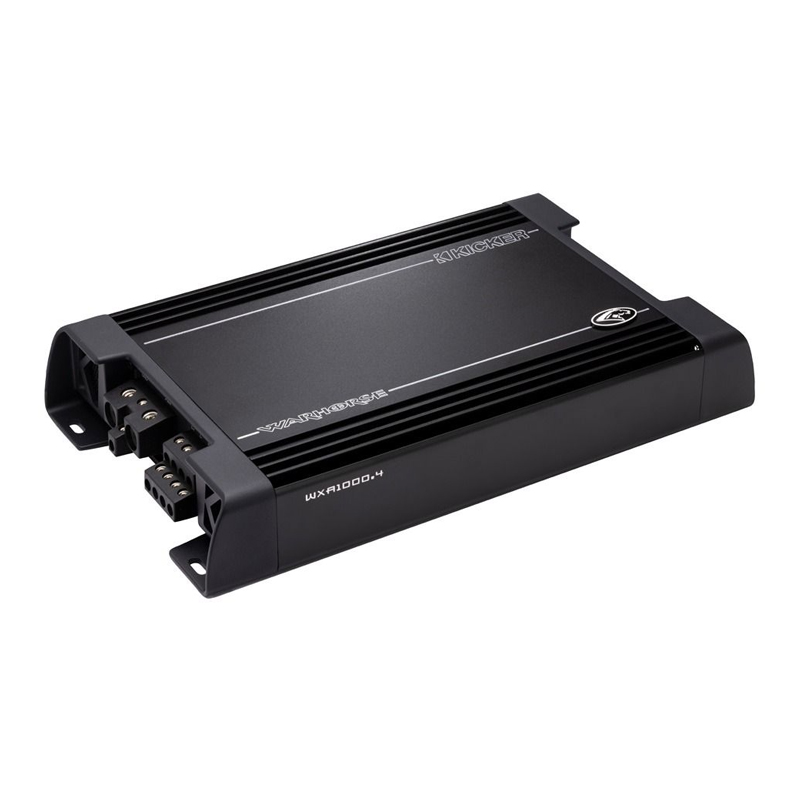

Kicker KA49WXA10004 Warhorse 4-Channel Class D Car Amplifier

Kicker KA49WXA10004 Warhorse

The Warhorse WXA3600.1 Mono Amplifier is built for extreme SPL performance and rock-solid reliability. Engineered in-house by KICKER, it delivers up to 3600W RMS, features quad cooling fans, competition mode, real-time diagnostic tools, and seamless factory or aftermarket integration.

Every aspect of the Warhorse was tortured mercilessly in our labs to ensure extreme performance and reliability. It was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.

Fortified to Go Hard

From the board layout to the rails, to the Tiffany-style RCA connectors, everything about these amps will make a bass head smile from ear to ear. This full-bridge, one-Ohm stable amplifier features dual 1/0 power and ground connections, 4 AWG speaker terminals, dual 8 AWG remote terminals, and quad microprocessor-controlled fans for fast but quiet cooling when you need it.

Real-Time Status Tools

Warhorse Amps come with a heavy-duty, magnetic-mount diagnostic tool, displaying battery voltage, thermal protection status, power-supply protection, and speaker current overload, all in real time! A premium remote bass-level control, also with magnetic mount, is included with the mono amp as well.

Compatible!

It’s equipped with the KICKER FIT+™ (Fail-safe Integration Technology) differential inputs and a 125mV-40V RCA input range, so the amps are fully compatible with most all factory or aftermarket source units. It’s also start/stop compliant.

Not your Average Amp!

• Engineered completely in-house by KICKER R&D
• Ultra-efficient, half-bridge Class-D design
• Fully start/stop compliant – operational to 6.5V
• 1/0 Power and Ground inputs to ensure you get the power you paid for
• Capable of daisy-chaining remote power across multiple amps
• Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m)
• RJ45 cable
• Quad micro-controller-regulated cooling fans
• Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)

Spec:

• 450W x 4 @ 2 ohm
• 250W x 4 @ 4 ohm
• 900W x 2 @ 4 ohm (bridged)
• Dynamic power: 2000W

Dimensions (cm):

• Heigh: 6.5
• Width: 23.2
• Length: 39.1

Specification

• Output Channels 1
• Voltage (V) 12
• Class D
• Fuse Rating (A) 200A
• Cable Gauge (AWG) 0
• Amp Turn-On
  • DC Offset
  • 12V
• Frequency Response (Hz) 10-20K
• Signal-to-Noise Ratio (dB) >90
• Filter Low-Pass
• Input Channels 2
• Input Type
  • High Level
  • Low Level
• Input Sensitivity Low Level 125mV-5V
• Input Sensitivity High Level 1V-40V
• Height (cm) 6.5
• Width (cm) 39.1
• Depth (cm) 23.2
• Colour Black
