MTX RFL12 – 12″ Subwoofer 3000W @ 2 Ohm

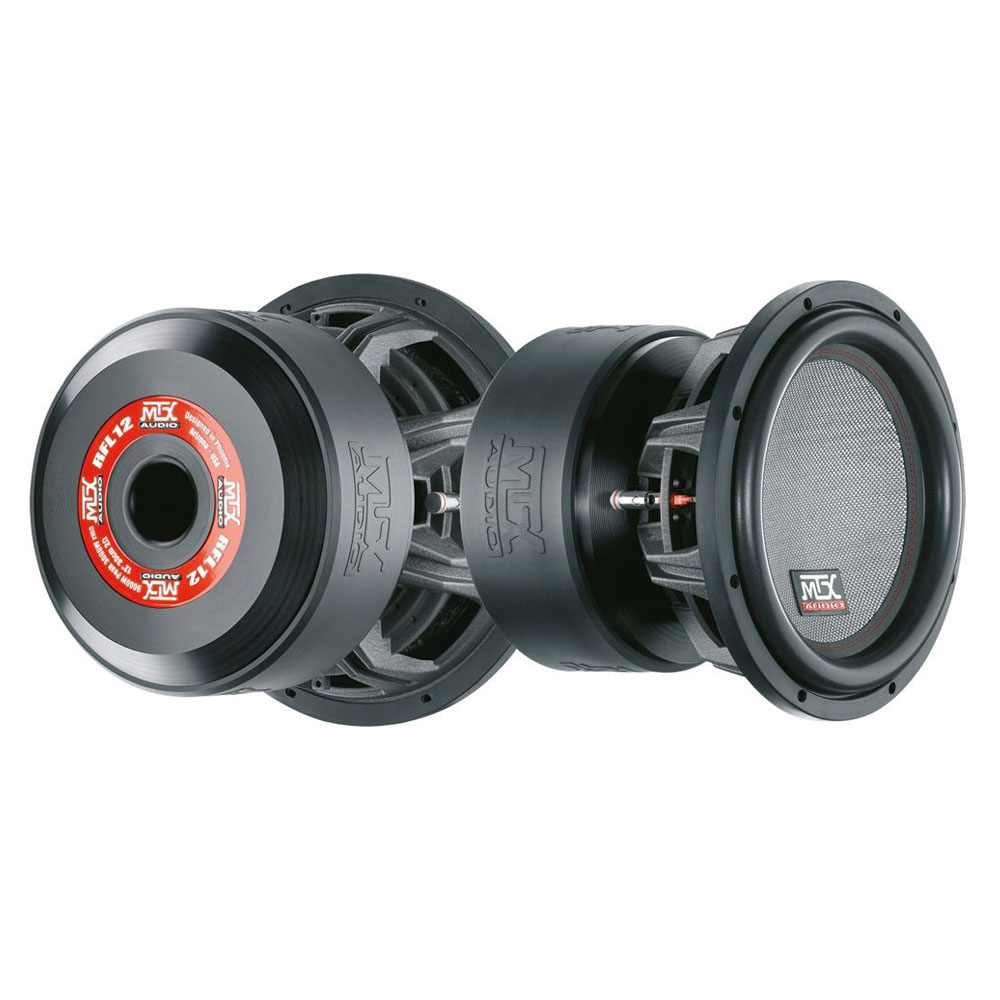

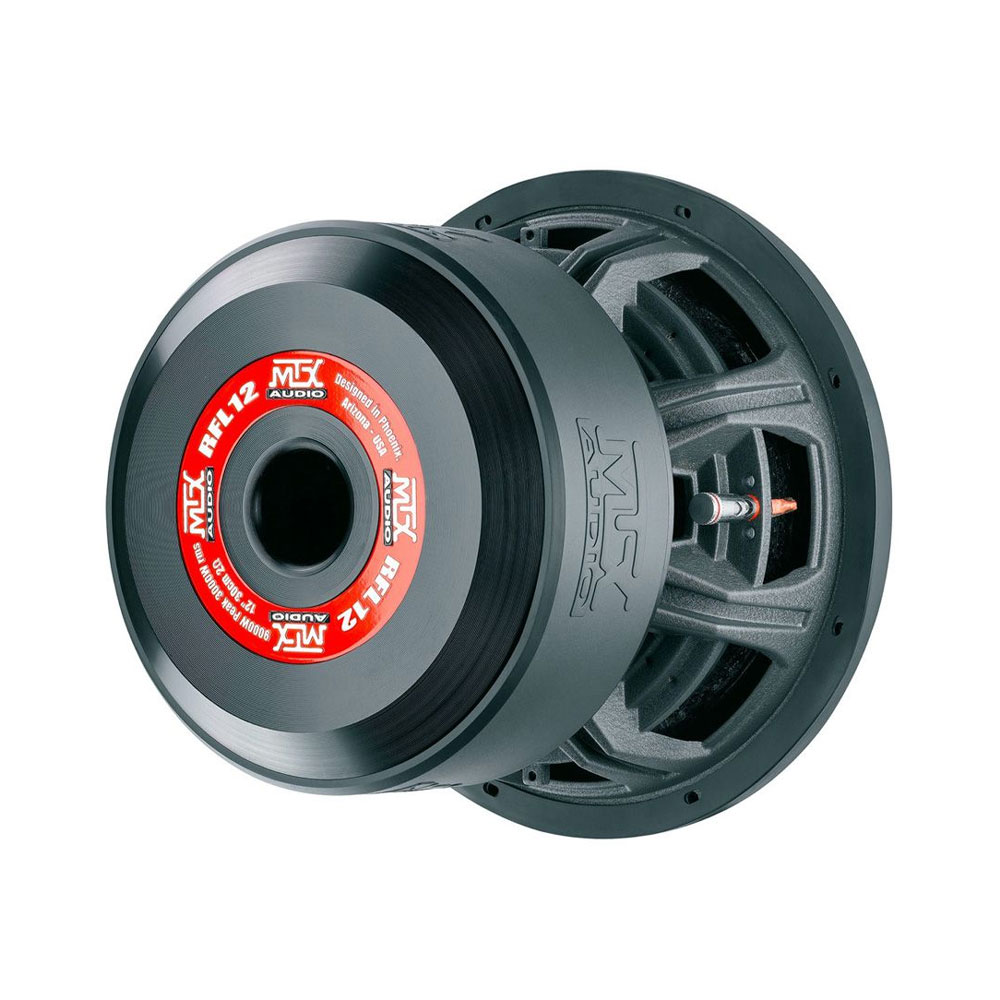

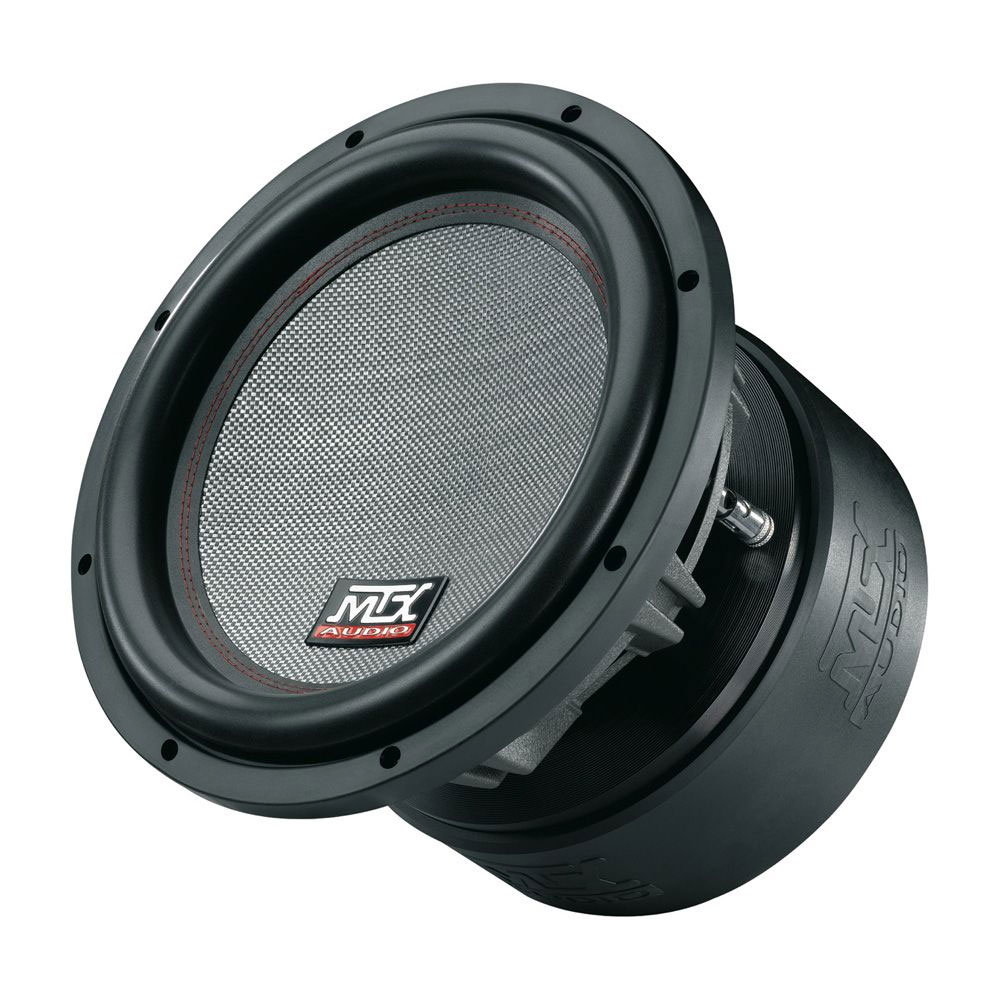

MTX RFL12 Subwoofer

Unleash supreme sound with the MTX RFL 12 Subwoofer. With a record-setting 3000W power, its the heir to a line of extreme subwoofers. Featuring a gigantic magnetic structure and a heavy-duty 100mm voice coil, this subwoofer offers unmatched control and power handling.

The MTX RFL12 subwoofer is the worthy heir to a line of extreme subwoofers. In 2002, the RFL152 with multiple SPL records, in 2005 the Jackhammer22 (Pimp My Ride), the biggest and heaviest sub ever marketed (165Kg diameter 56cm), in 2005 the Jackhammer24 the largest square subwoofer ever marketed…

The RFL12 surpasses all of its ancestors… It is the very best.

• Gigantic magnetic structure with more than 14Kg of strontium… Perhaps the largest on the market
• 35mm thick front plate (It measured 8mm on the older T9500s). This is what it takes to pass the enormous magnetic flux generated by the magnet and control the coil like no other subwoofer can.
• 35mm thick rear plate.
• 100mm (4″) BASV voice coil support. The strongest available on the market…
• 4-layer coil for extreme power handling.
• Flat wire to better fill the air gap and obtain better reactivity.
• Aluminum wire (for the weight), plated with copper (to pass the intensity) of the CCAR type.
• Double screwed Nomex spider for easier replacement and more precise assembly.
• The top suspension is capable of handling over 90mm of travel.
• Cone and suspension with double stitching of red thread.
• Symmetrical terminal blocks accepting 10mm2 cables.
• Cables terminal blocks-coils double is sewn on the spider to easily follow the deflections of the membrane.
• The weight of the RFL12 reaches 36kg.
• It comes in a wooden crate because the cardboard would not be enough.
• You need a hand truck or a pallet truck to move it.
• Its parameters are optimized for use in ported boxes.

Technical Specifications

• 30cm (12″) Subwoofer
• Peak power: 9000W
• RMS power: 3000W
• Sensitivity: 90.0dB/2.83v/1m
• Impedance: 2Ω Single voice coil
• Coil diameter: 100mm (4″)
• BL factor: 25.0
• Response: 26Hz – 500Hz
• Depth: 23.0cm
• Weight: 36kg

Thiele/Small parameters

• Fs : 32 Hz
• Mms : 326 grams
• Re : 2 Ω
• Cms : 0,05 mm/N
• Z : 2 Ω
• Bl : 25 N/A
• Qms : 5,33
• Sd : 496,8 cm2 (77.88 in2)
• Qes : 0,40
• Vd : liter
• Qts : 0,37
• Xmax mechanical : 47,5mm
• Xmax : 15,0mm
• Vas : 21,0 liters
• SPL 2,83V/1m : 90,0 dB
• Prms : 3000 Watts

Specifications

• Style Round
• Impedance (Ohms) 2
• Voice Coils Single
• RMS Power (W) 3000
• Peak Power (W) 9000
• Sensitivity (dB @ 1W/1m) 90
• Frequency Response (Hz) 26-500
• Mounting Depth (cm) 23
• Mounting Hole Diameter (cm) 28.5
• Brand MTX

Grills Not Included
